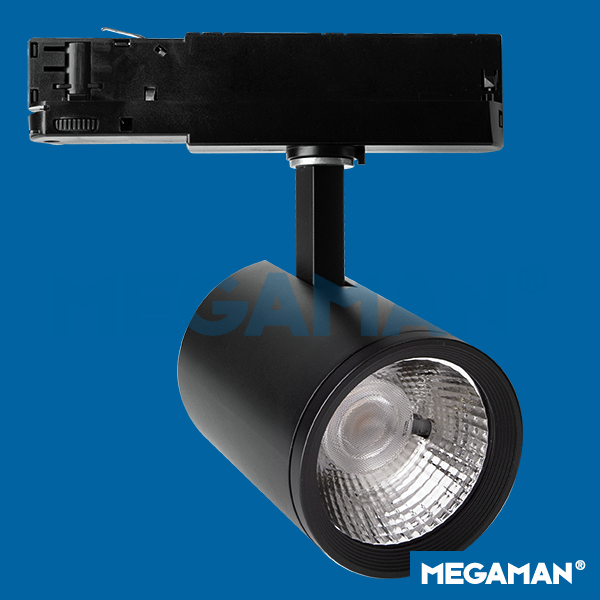

MEGAMAN | FTK71400v0-db/r9+025D045D - MARCO 90 - Track Lighting - Indoor Luminaires | Integrated LED Fixtures, Directional Lighting

Family Datasheet

Product Datasheet

Model no.:

Electrical Data
Voltage (V)	220-240V
Frequency (Hz)	50/60
Input Current (mA)	210
Power Factor (λ)	>0.9
Product Data
Product Wattage (W)	37
Light Source	Integrated LED-4000r9
Beam Angle (°)	25/45
Colour Render Index (Ra)	Ra90
Protection Class	CL I
Colour Consistency (SDCM)	4
Dimmable	no
Operating Temperature	-30°C to +40°C
Ambient Temperature Range (Ta)	40
Switching Cycles (times)	100000
Weight (g)	740
Application	Museums, Restaurants, Shop Lighting, Showrooms
Performance Data
Luminous Flux (lm)	2700
Rated Useful Luminous Flux (lm)	2650
Luminous Efficacy (lm/W)	N/A
Rated Life (hrs)	50,000hrs L70B50@Ta25°C
IP Rating	IP20/IP20
Product Dimensions
Diameter (mm)	90
Height (mm)	196

The innovative Dual Beam Technology empowers commercial users to have two beam angles in one single lamp/luminaire. It offers high flexibility of changing the beam angles onsite for different application requirements.

Indoor
