Family Datasheet
     Product Datasheet
Model no.:

FFL72100v0

Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60
Input Current (mA) 211
Power Factor (λ) >0.9
Product Data
Product Wattage (W) 50
Light Source Integrated LED-3000
Beam Angle (°) 110
Colour Render Index (Ra) Ra80
Protection Class CL I
Colour Consistency (SDCM) 6
Dimmable no
Energy Label F
Operating Temperature -30°C to +50°C
Ambient Temperature Range (Ta) 50
Switching Cycles (times) 100000
Application Billboards, Façade, Gate areas, Industrial Areas, Warehouses
Performance Data
Luminous Flux (lm) 4250
Rated Useful Luminous Flux (lm) 4720
Luminous Efficacy (lm/W) 85
Rated Life (hrs) 30,000hrs L70B50@Ta25°C
IP Rating IP65/IP65

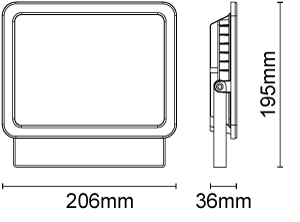

Product Dimensions
Length (mm) 195
Width (mm) 206
Height (mm) 30
Remarks
Open wire version
