Family Datasheet
Product Datasheet

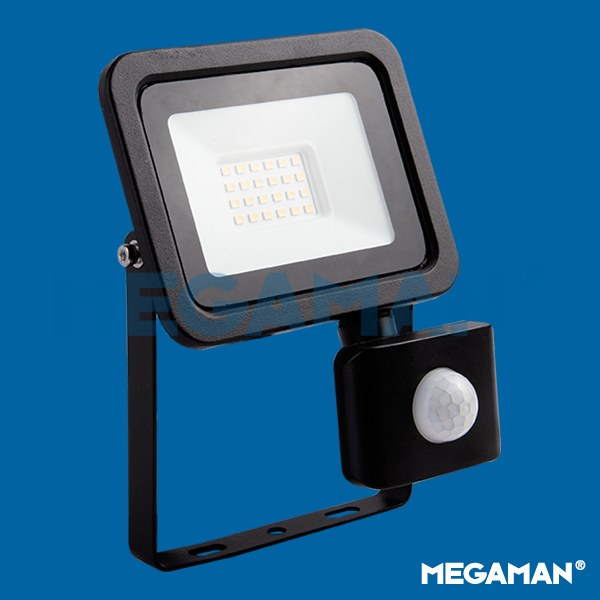

FFL71900v0-ps
Electrical Data | |
Voltage (V) | 220-240V |
Frequency (Hz) | 50/60 |
Input Current (mA) | 91 |
Power Factor (λ) | >0.9 |
Product Data | |
Product Wattage (W) | 21 |
Light Source | Integrated LED-3000 |
Beam Angle (°) | 110 |
Colour Render Index (Ra) | Ra80 |
Protection Class | CL I |
Colour Consistency (SDCM) | 6 |
Dimmable | no |
Energy Label | F |
Operating Temperature | -30°C to +50°C |
Ambient Temperature Range (Ta) | 50 |
Switching Cycles (times) | 100000 |
Application | Billboards, Façade, Gate areas, Industrial Areas, Warehouses |
Performance Data | |
Luminous Flux (lm) | 1700 |
Luminous Efficacy (lm/W) | 81 |
Rated Life (hrs) | 30,000hrs L70B50@Ta25°C |
IP Rating | IP54/IP54 |
Product Dimensions | |
Length (mm) | 163 |
Width (mm) | 121 |
Height (mm) | 45 |
Remarks Open wire version |
