Family Datasheet
     Product Datasheet

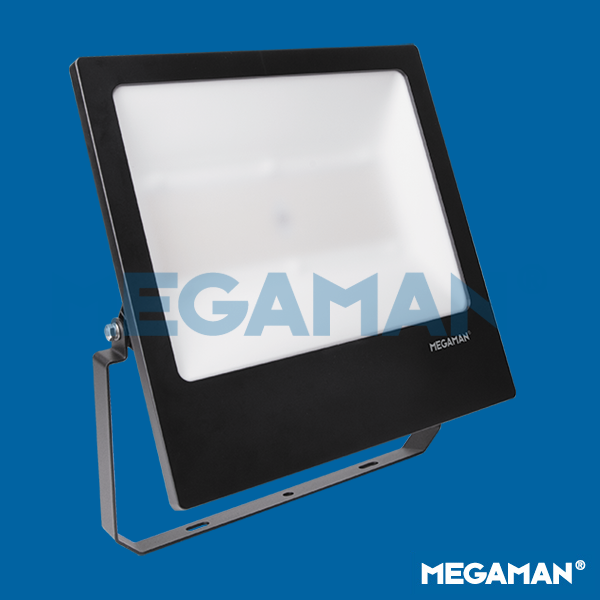

Model no.:

FFL71000v0

Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60 Hz
Input Current (mA) 390
Power Factor (λ) >0.9
Product Data
Colour Render Index (Ra) > Ra80
Colour Consistency (SDCM) SDCM <6
Operating Temperature -30°C to +50°C
Switching Cycles (times) 100000
Weight (g) 1496
Application Commercial, Industrial, Car parks, Gardens, Parks, Sports center
Performance Data
Total Luminous Flux (lm) 9860
Luminous Flux (lm) 9860
IP Rating IP65/IP65
Product Dimensions
Length (mm) 337
Width (mm) 297
Height (mm) 89
Push-in Terminals (mm2) 1~2.5push
Remarks
DC Input Voltage:180~260VDC
