     Family Datasheet
     Product Datasheet

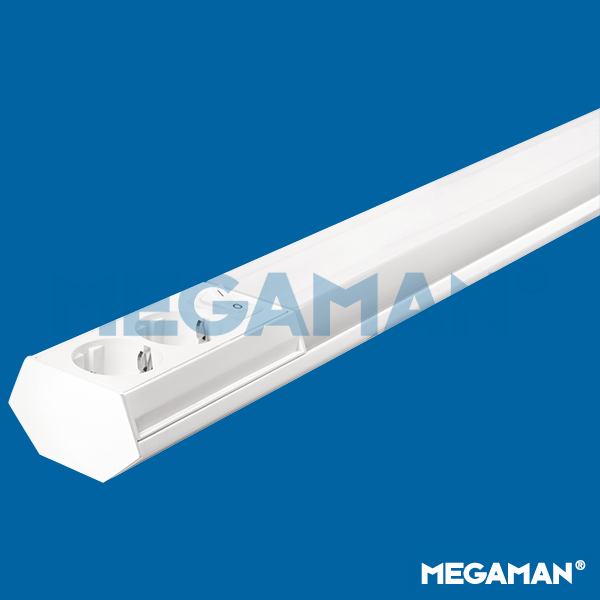

Model no.:

FIB70300v0-sc

Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60
Input Current (mA) 25
Power Factor (λ) >0.7
Product Data
Product Wattage (W) 4.5
Light Source Integrated LED-3000/4000
Beam Angle (°) 110
Colour Render Index (Ra) Ra80
Protection Class CL I
Colour Consistency (SDCM) 6
Dimmable no
Energy Label D
Operating Temperature -30°C to +40°C
Ambient Temperature Range (Ta) 25
Switching Cycles (times) 100000
Application Corridors, Kitchens, Staircases, Under cabinet
Performance Data
Luminous Flux (lm) 500/540
Rated Useful Luminous Flux (lm) 570
Luminous Efficacy (lm/W) 111/20
Rated Life (hrs) 40,000hrs L70B50@Ta25°C
IP Rating IP20/IP20
Product Dimensions
Length (mm) 457
Width (mm) 75
Height (mm) 61
Remarks
factory setting:3000K
