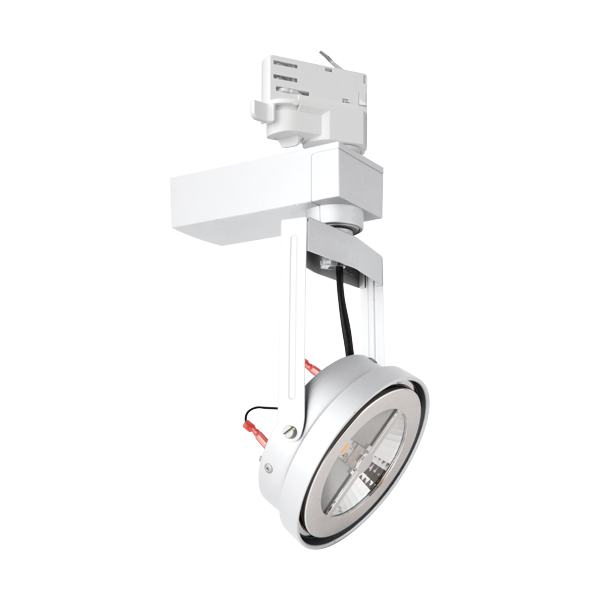

TOBY Track Lighting (AR111)

Max. 11W LED AR111 G53

Specification Sheet

Product Code:

Product Data
Max. Wattage (W)	10
Light Source	LED AR111
Lamp Base	G53
Rotating Angle (°)	340
Tilting Angle (°)	170
Colour	White (WH21), Silver (SV23), Black (BK21), Gold (GD21)
Materials	Steel and Plastic
Protection Class	Class III
Dimmable	N/A
Weight (g)	277
Application	Galleries, Hotels, Residential applications, Restaurants, Retail outlets
Performance Data
IP Rating	IP20
Product Dimensions
Diameter (mm)	117
Length (mm)	170
Height (mm)	261

8° 24° 45°

ER0210-50H08D
Voltage (V):  DC 20V
Constant Current (mA):  500
Wattage (W):  10
Max. Luminous Intensity (cd):  16000

ER2111d-50H08D
Voltage (V):  AC 12V
Wattage (W):  11
Max. Luminous Intensity (cd):  15000

ER0110-50H24D
Voltage (V):  DC 20V
Constant Current (mA):  500
Wattage (W):  10
Max. Luminous Intensity (cd):  3600

ER2711d-50H24D
Voltage (V):  AC 12V
Wattage (W):  11
Max. Luminous Intensity (cd):  3600

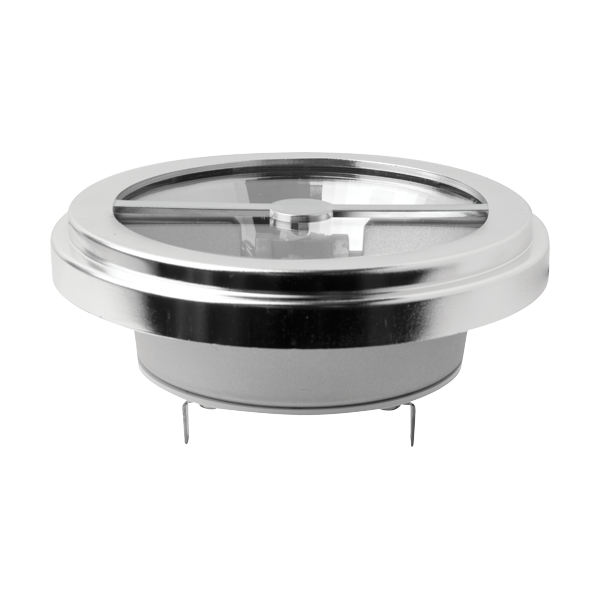

ER3712w-75H24D
Voltage (V):  DC 36V
Constant Current (mA):  350
Wattage (W):  12
Max. Luminous Intensity (cd):  5000

ER0310-50H45D
Voltage (V):  DC 20V
Constant Current (mA):  500
Wattage (W):  10
Max. Luminous Intensity (cd):  1400

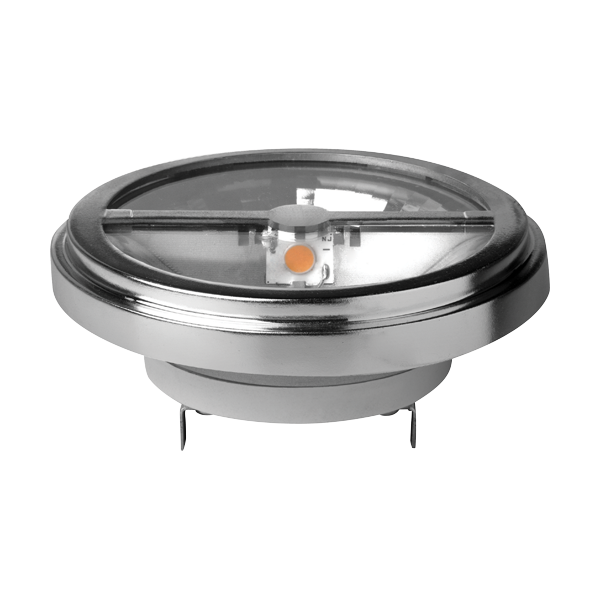

ER2911d-50H45D
Voltage (V):  AC 12V
Wattage (W):  11
Max. Luminous Intensity (cd):  1400

ER3912w-75H45D
Voltage (V):  DC 36V
Constant Current (mA):  350
Wattage (W):  12
Max. Luminous Intensity (cd):  2000
