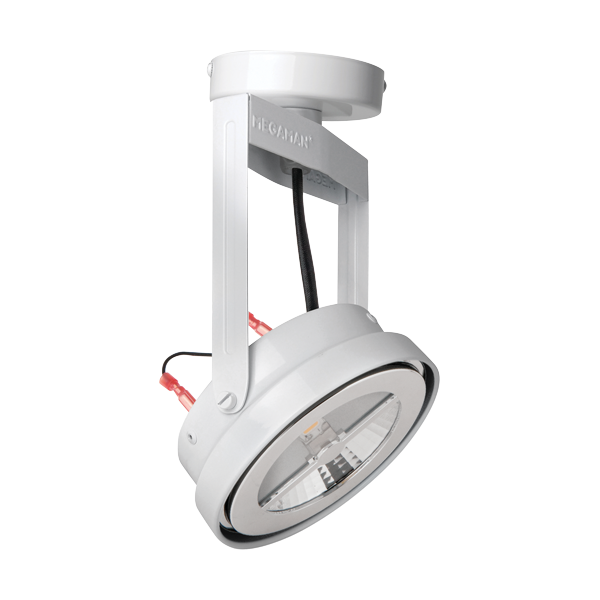

TOBY Track Lighting (AR111) - Surface Mounted Version


     Specification Sheet
Product Code:

F13139SM

Product Data
Max. Wattage (W) 11
Light Source LED AR111
Lamp Base G53
Rotating Angle (°) 340
Tilting Angle (°) 170
Colour White (WH21), Silver (SV23), Black (BK21), Gold (GD21)
Materials Steel and Plastic
Protection Class Class III
Dimmable N/A
Weight (g) 270
Application Galleries, Hotels, Residential applications, Restaurants, Retail outlets
Performance Data
IP Rating IP20

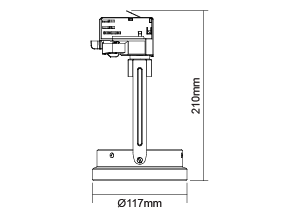

Product Dimensions
Diameter (mm) 117
Height (mm) 209

Suggested Light Sources

LR1712d-50H08D
Voltage (V):  220-240V
Wattage (W):  12
Max. Luminous Intensity (cd):  16000
LR1715d-75H08D
Voltage (V):  220-240V
Wattage (W):  15
Max. Luminous Intensity (cd):  20000
LR1612d-50H24D
Voltage (V):  220-240V
Wattage (W):  12
Max. Luminous Intensity (cd):  3600
LR1615d-75H24D
Voltage (V):  220-240V
Wattage (W):  15
Max. Luminous Intensity (cd):  5000
LR1812d-50H45D
Voltage (V):  220-240V
Wattage (W):  12
Max. Luminous Intensity (cd):  1400
LR1815d-75H45D
Voltage (V):  220-240V
Wattage (W):  15
Max. Luminous Intensity (cd):  2000
