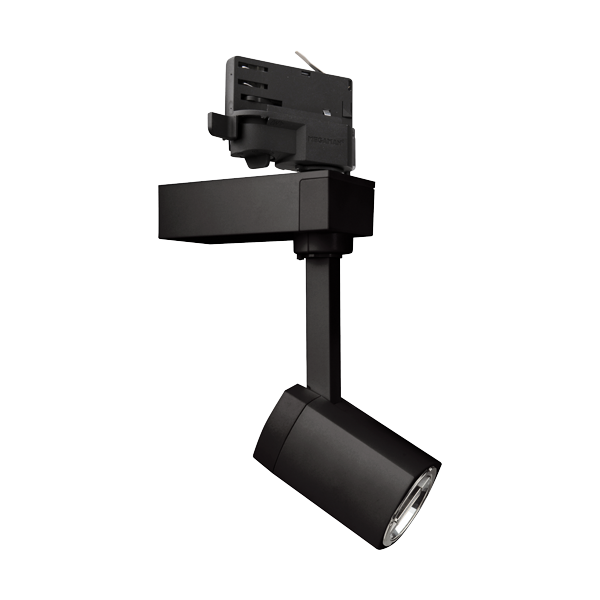

MOSAIC Track Lighting (MR16)


     Specification Sheet
Product Code:

F22241TK

Product Data
Max. Wattage (W) 10
Light Source LED MR16
Lamp Base GU5.3
Rotating Angle (°) 330
Tilting Angle (°) 90
Colour White (WH12), Silver (SV22), Black (BK12)
Materials Polycarbonate
Protection Class Class III
Dimmable N/A
Weight (g) 325
Application Galleries, Hotels, Reception Areas, Restaurants, Retail outlets, Showrooms
Performance Data
IP Rating IP20
Product Dimensions
Length (mm) 132
Width (mm) 59
Height (mm) 274

Suggested Light Sources

ER1908d-SP
Voltage (V):  AC 12V
Wattage (W):  8
Max. Luminous Intensity (cd):  3500
ER2404.5-35H24D
Voltage (V):  AC 12V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  1300
ER2508dLN-FL
Voltage (V):  AC 12V
Wattage (W):  8
Max. Luminous Intensity (cd):  2900
ER2607.5LN-FL
Voltage (V):  AC 12V
Wattage (W):  7.5
Max. Luminous Intensity (cd):  2900
ER3207-50H24D
Voltage (V):  AC 12V
Wattage (W):  7
Max. Luminous Intensity (cd):  2000
ER3207.5d-50H24D
Voltage (V):  AC 12V
Wattage (W):  7.5
Max. Luminous Intensity (cd):  2000
ER3308dLN-FL
Voltage (V):  AC 12V
Wattage (W):  8
Max. Luminous Intensity (cd):  3000

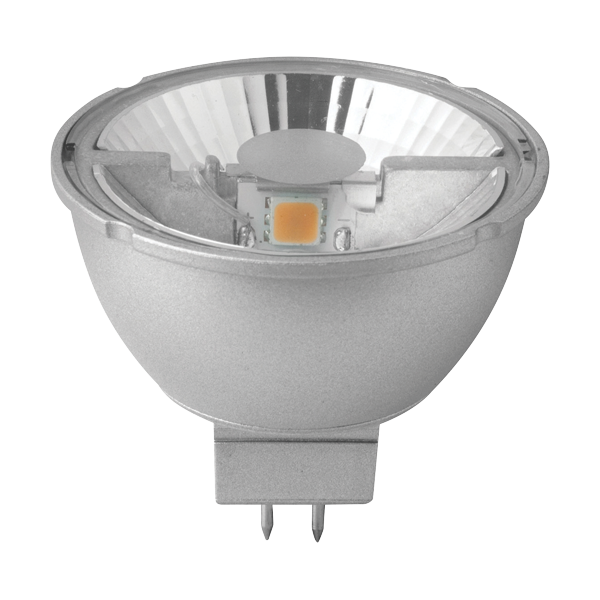

ER2404.5-35H36D
Voltage (V):  AC 12V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  600
ER2404DG-WFL
Voltage (V):  AC 12V
Wattage (W):  4
Max. Luminous Intensity (cd):  260

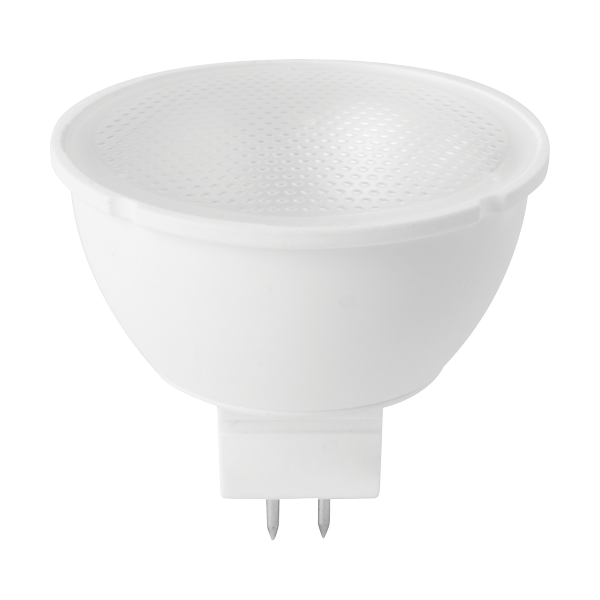

ER2405DG-WFL
Voltage (V):  AC 12V
Wattage (W):  5
Max. Luminous Intensity (cd):  360

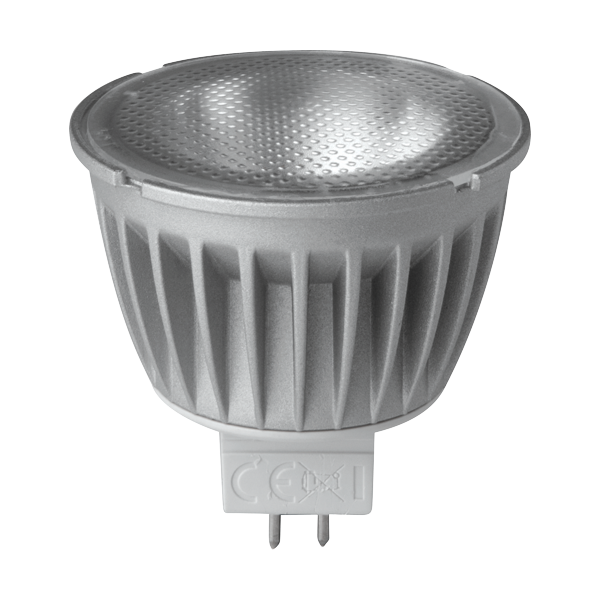

ER2506DG-WFL
Voltage (V):  AC 12V
Wattage (W):  6
Max. Luminous Intensity (cd):  650
ER2507.5DG-WFL
Voltage (V):  AC 12V
Wattage (W):  7.5
Max. Luminous Intensity (cd):  800
ER2508dDG-WFL
Voltage (V):  AC 12V
Wattage (W):  8
Max. Luminous Intensity (cd):  800
ER2508dLN-WFL
Voltage (V):  AC 12V
Wattage (W):  8
Max. Luminous Intensity (cd):  1600
ER2607.5LN-WFL
Voltage (V):  AC 12V
Wattage (W):  7.5
Max. Luminous Intensity (cd):  1800
ER3207-50H36D
Voltage (V):  AC 12V
Wattage (W):  7
Max. Luminous Intensity (cd):  1100
ER3207.5d-50H36D
Voltage (V):  AC 12V
Wattage (W):  7.5
Max. Luminous Intensity (cd):  1100
ER3405DG-WFL
Voltage (V):  AC 12V
Wattage (W):  5
Max. Luminous Intensity (cd):  350
ER3406DG-WFL
Voltage (V):  AC 12V
Wattage (W):  6
Max. Luminous Intensity (cd):  500
ER2405DG-VWFL
Voltage (V):  AC 12V
Wattage (W):  5
Max. Luminous Intensity (cd):  240
