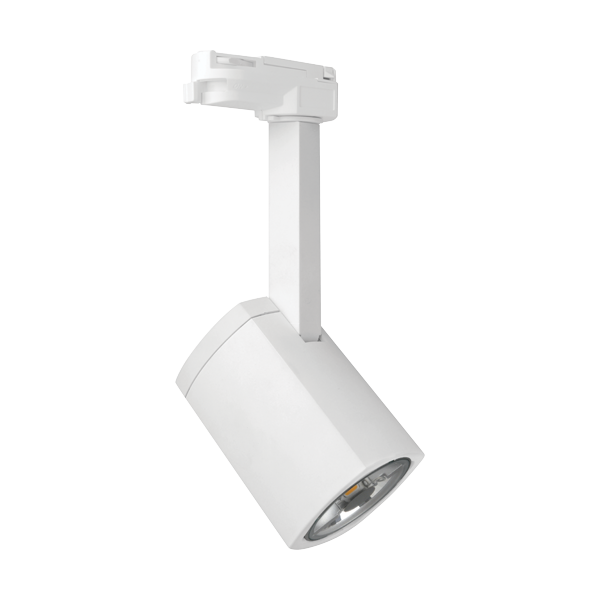

MOSAIC Track Lighting (PAR16)

Max. 8W LED PAR16 GU10

Specification Sheet

Product Code:

Product Data
Max. Wattage (W)	8
Light Source	LED PAR16
Lamp Base	GU10
Rotating Angle (°)	330
Tilting Angle (°)	90
Colour	White (WH12)
Materials	Polycarbonate
Protection Class	Class II
Dimmable	N/A
Application	Galleries, Hotels, Reception Areas, Restaurants, Retail outlets, Showrooms
Performance Data
IP Rating	IP20

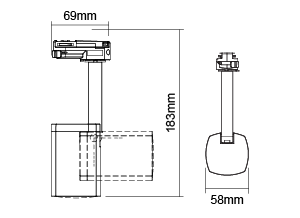

Product Dimensions
Length (mm)	69
Width (mm)	58
Height (mm)	183

24° 35° 40° 60° 90°

LR4204.5-35H24D
Voltage (V):  220-240V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  1300

LR4407-50H24D
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  2200

LR4407d-50H24D
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  2200

LR1204dDGv2-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  300

LR1204DGv2-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  300

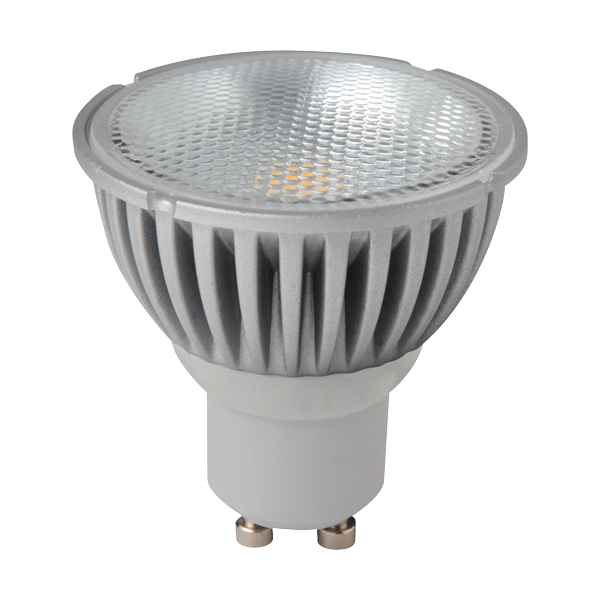

LR1206dDGv2-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  500

LR2104DG-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  560

LR2307dDG-WFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  650

LR2307DG-WFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  650

LR3808dBT-WFL
Voltage (V):  220-240V
Wattage (W):  8
Max. Luminous Intensity (cd):  750

LR4204.5-35H35D
Voltage (V):  220-240V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  600

LR4407-50H35D
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  1200

LR4407d-50H35D
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  1200

LR4604DG-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  500

LR5006wDG-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  480

More Options

LR2104.5DG-WFL
Voltage (V):  220-240V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  600

LR2105dDG-WFL
Voltage (V):  220-240V
Wattage (W):  5
Max. Luminous Intensity (cd):  480

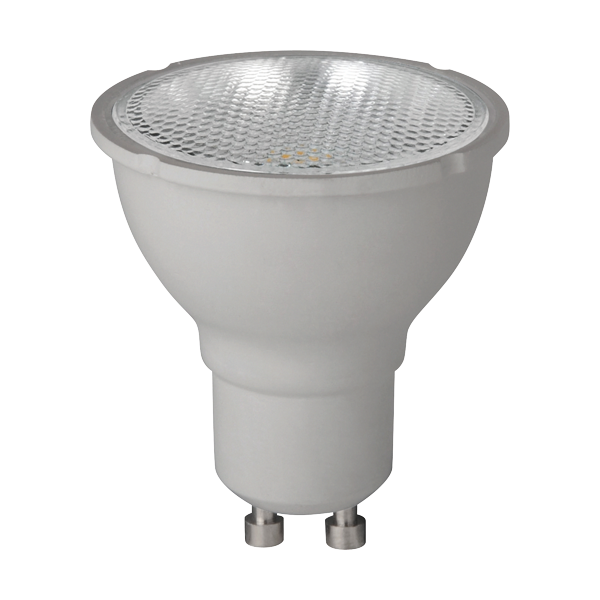

LR2105sDG-WFL
Voltage (V):  220-240V
Wattage (W):  5
Max. Luminous Intensity (cd):  350

LR2106sDG-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  480

LR4605DG-WFL
Voltage (V):  220-240V
Wattage (W):  5
Max. Luminous Intensity (cd):  560

LR4606dDG-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  480

LR4607DG-WFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  540

More Options

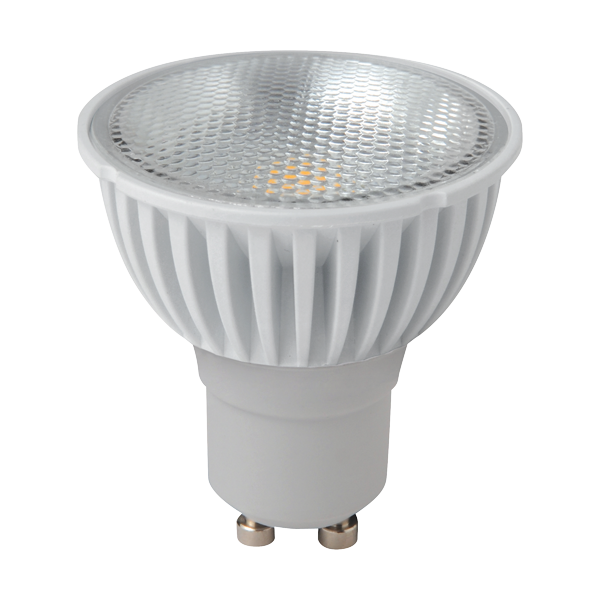

LR1204dDGv2-VWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  200

LR1204DGv2-VWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  200

LR1206dDGv2-VWFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  240

LR2104DG-VWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  300

LR2307dDG-VWFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  300

LR5007dDG-VWFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  360

More Options

LR2104DG-SWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  160
