MOSAIC Track Lighting (PAR16) - Surface Mounted Version


     Specification Sheet
Product Code:

F11517SM

Product Data
Max. Wattage (W) 8
Light Source LED PAR16
Lamp Base GU10
Rotating Angle (°) 330
Tilting Angle (°) 90
Colour White (WH12), Silver (SV22), Black (BK12)
Materials Polycarbonate
Protection Class Class II
Dimmable N/A
Weight (g) 145
Application Galleries, Hotels, Reception Areas, Restaurants, Retail outlets, Showrooms
Performance Data
IP Rating IP20

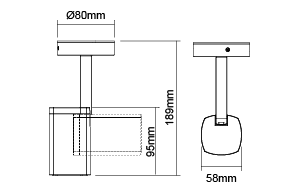

Product Dimensions
Diameter (mm) 80
Width (mm) 58
Height (mm) 189

Suggested Light Sources

LR4407-50H24D
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  2200
LR4407d-50H24D
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  2200
LR4204.5-35H24D
Voltage (V):  220-240V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  1300
LR4407-50H35D
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  1200
LR4407d-50H35D
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  1200
LR3808dBT-WFL
Voltage (V):  220-240V
Wattage (W):  8
Max. Luminous Intensity (cd):  750
LR2307dDG-WFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  650
LR2307DG-WFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  650
LR2104.5DG-WFL
Voltage (V):  220-240V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  600
LR4204.5-35H35D
Voltage (V):  220-240V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  600
LR2104DG-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  560
LR1206dDGv2-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  500
LR4604DG-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  500
LR5006wDG-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  480
LR1204DGv2-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  300
LR1204dDGv2-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  300
LR4605DG-WFL
Voltage (V):  220-240V
Wattage (W):  5
Max. Luminous Intensity (cd):  560
LR4607DG-WFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  540
LR4606dDG-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  480
LR2106sDG-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  480
LR2105dDG-WFL
Voltage (V):  220-240V
Wattage (W):  5
Max. Luminous Intensity (cd):  480
LR2105sDG-WFL
Voltage (V):  220-240V
Wattage (W):  5
Max. Luminous Intensity (cd):  350
LR5007dDG-VWFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  360
LR2307dDG-VWFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  300
LR2104DG-VWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  300
LR1206dDGv2-VWFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  240
LR1204DGv2-VWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  200
LR1204dDGv2-VWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  200
LR2104DG-SWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  160
