MODENA Track Lighting (RDx)

White (WH25/WH26)
Silver (SV28)
Black (BK24)
Beam 25
Beam 45
Rotate 330
Tilt +/-90
Class II

Luminaire with LED Module TECOH® RDx RD0231M (700mA)
Photometric Diagram
Lux-cone Diagram
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:


Electrical Data
Voltage (V) 220-240V
Power Factor (λ) >0.9
Product Data
Product Wattage (W) 27
Light Source TECOH® RDx RD0231M with input current 700mA
Beam Angle (°) 25, 45
Rotating Angle (°) 330
Tilting Angle (°) ±90
Colour Temperature (K) Warmwhite (3000K), Coolwhite (4000K)
Colour Render Index (Ra) Ra82
Colour White (WH25/WH26), Silver (SV28), Black (BK24)
Materials Aluminium
Protection Class Class II
Dimmable Yes
Weight (g) 937
Application Hotels, Museums, Restaurants, Shop Lighting, Showrooms
Performance Data
Max. Luminous Intensity (cd) 11000 [25°], 4000 [45°]
Luminous Flux (lm) 2200 [3000K], 2400 [4000K]
Luminous Efficacy (lm/W) 81 [3000K], 89 [4000K]
Rated Life (hrs) 50000
IP Rating IP20

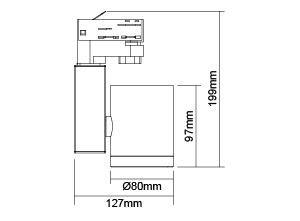

Product Dimensions
Diameter (mm) 80
Length (mm) 127
Height (mm) 199
Capable of linear dimming when working with DALI, DSI or 1-10V dimming driver, and the dimming performance depends on the specification of driver. Please contact us for details.
