MODENA Track Lighting (MHx)




White (WH25/WH26)
Silver (SV28)
Black (BK24)
Beam 25
Beam 35
Beam 45
Rotate 330
Tilt +/-90
IP20
Class II




Luminaire with LED Module TECOH® MHx MH0130 (700mA)
F25343TK-25°
Photometric Diagram
Lux-cone Diagram
F25343TK-35°
Photometric Diagram
Lux-cone Diagram
F25343TK-45°
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:

F25343TK

Electrical Data
Power Factor (λ) >0.9
Product Data
Product Wattage (W) 28
Light Source TECOH® MHx MH0130 with input current 700mA
Beam Angle (°) 25, 35, 45
Rotating Angle (°) 330
Tilting Angle (°) ±90
Colour White (WH25/WH26), Silver (SV28), Black (BK24)
Materials Aluminium
Protection Class Class II
Dimmable N/A
Weight (g) 1552
Application Hotels, Museums, Restaurants, Shop Lighting, Showrooms
Performance Data
IP Rating IP20

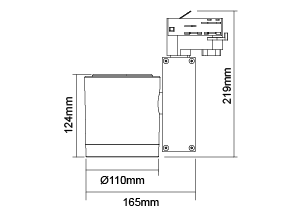

Product Dimensions
Diameter (mm) 110
Length (mm) 165
Height (mm) 219
