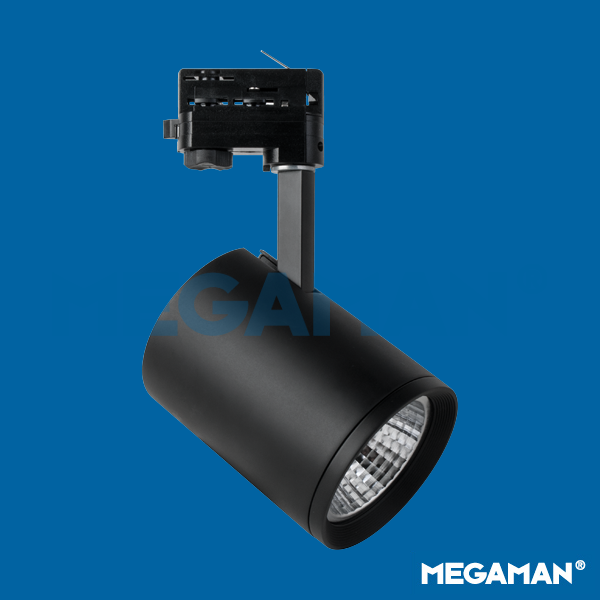

MARCO Track Lighting (Integrated)




White (WH26)
Silver (SV28)
Black (BK24)
Beam 25
Beam 45
Rotate 330
Tilt 90
IP20
Class II




Integrated LED Luminaire
FTK70100v1-25°
Photometric Diagram
Lux-cone Diagram
FTK70100v1-45°
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:

FTK70100v1

Electrical Data
Voltage (V) 220-240V
Power Factor (λ) >0.9
Product Data
Product Wattage (W) 52
Beam Angle (°) 25, 45
Rotating Angle (°) 330
Tilting Angle (°) 90
Colour Temperature (K) Warmwhite (3000K), Coolwhite (4000K)
Colour Render Index (Ra) ≥Ra80
Colour White (WH26), Silver (SV28), Black (BK24)
Materials Aluminium
Protection Class Class Ⅱ
Colour Consistency (SDCM) ≤3
Dimmable No
Operating Temperature -30°C to +40°C
Application Hotels, Museums, Restaurants, Shop Lighting, Showrooms
Performance Data
Max. Luminous Intensity (cd) 25000 [25°], 10000 [45°]
Luminous Flux (lm) 4800 [3000K], 5000 [4000K]
Luminous Efficacy (lm/W) 92 [3000K], 96 [4000K]
Rated Life (hrs) 50000hrs at L70 B50 at Ta 25°C
Product Dimensions
Diameter (mm) 110
Height (mm) 248
Remarks
Accessories:

LA10054 Spread lens
LA10055 Rectangular lens
LA10056 Honeycomb louvre
LA10057 Barn doors
LA10058 Coloured filter (Red)
LA10059 Coloured filter (Yellow)
LA10060 Coloured filter (Blue)
LA10061 Coloured filter (Green)
