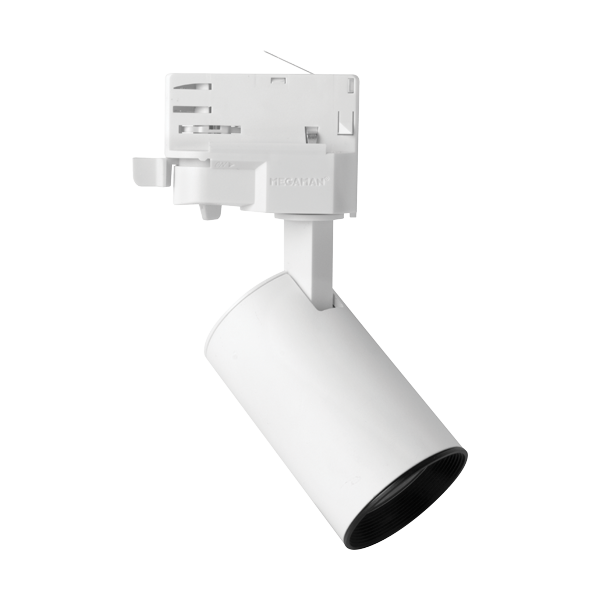

MARCO Mini Track Lighting (Integrated) - Ultra RichColour




White (WH26)
Silver (SV28)
Black (BK24)
Beam 24
Beam 36
Rotate 330
Tilt 90
IP20
Class II




Integrated LED Luminaire
FTK70000v0-ru-24°
Photometric Diagram
Lux-cone Diagram
FTK70000v0-ru-36°
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:

FTK70000v0-ru

Electrical Data
Voltage (V) 220-240V
Power Factor (λ) >0.9
Product Data
Product Wattage (W) 12
Beam Angle (°) 24, 36
Rotating Angle (°) 330
Tilting Angle (°) 90
Colour Temperature (K) Warmwhite (2800K), Coolwhite (4000K)
Colour Render Index (Ra) Ra97
Colour White (WH26), Silver (SV28), Black (BK24)
Materials Aluminium
Protection Class Class Ⅱ
Colour Consistency (SDCM) ≤6
Dimmable No
Operating Temperature -30°C to +40°C
Application Hotels, Museums, Restaurants, Shop Lighting, Showrooms
Performance Data
Max. Luminous Intensity (cd) 4350 [24°], 2100 [36°]
Luminous Flux (lm) 750 [2800K], 800 [4000K]
Luminous Efficacy (lm/W) 63 [2800K], 67 [4000K]
Rated Life (hrs) 25000hrs at L70 B50 at Ta 25°C
Product Dimensions
Diameter (mm) 50
Height (mm) 160
Remarks
Accessories:

LA10034 Honeycomb louvre
