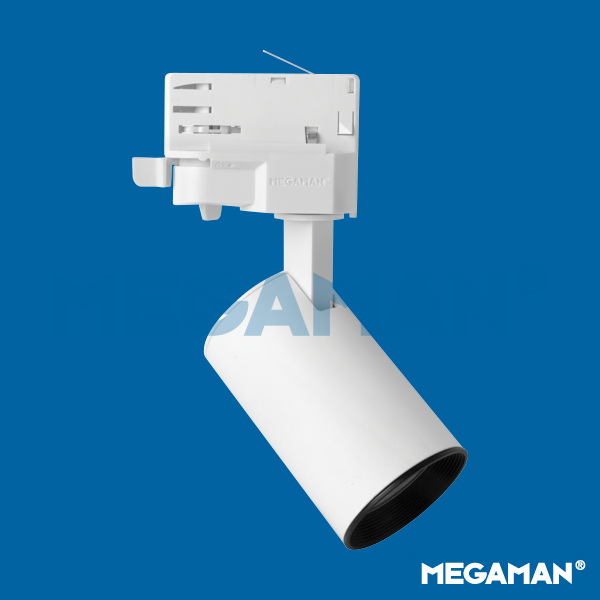

MARCO Mini Track Lighting (Integrated)


Dual Beam Technology


White (WH12)
Black (BK12)
Beam 24
Beam 36
Rotate 330
Tilt 90
IP20
Class II




Integrated LED Luminaire
FTK70000v0-24°
Photometric Diagram
Lux-cone Diagram
FTK70000v0-36°
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:

FTK70000v0-db

Electrical Data
Voltage (V) 220-240V
Power Factor (λ) >0.9
Product Data
Product Wattage (W) 12
Beam Angle (°) 24, 36
Rotating Angle (°) 330
Tilting Angle (°) 90
Colour Temperature (K) Warmwhite (2800K), Coolwhite (4000K)
Colour Render Index (Ra) ≥Ra80
Colour White (WH12), Black (BK12)
Materials Aluminium
Protection Class Class Ⅱ
Colour Consistency (SDCM) ≤3
Dimmable No
Operating Temperature -30°C to +40°C
Weight (g) 170
Application Hotels, Museums, Restaurants, Shop Lighting, Showrooms
Performance Data
Max. Luminous Intensity (cd) 5500 [24°], 2650 [36°]
Luminous Flux (lm) 950
Luminous Efficacy (lm/W) 79
Rated Life (hrs) 25000hrs at L70 B50 at Ta 25°C
IP Rating IP20
Product Dimensions
Diameter (mm) 50
Height (mm) 160
Remarks
Accessories:

LA10034 Honeycomb louvre

Technologies

  • Dual Beam Technology
    The innovative Dual Beam Technology empowers commercial users to have two beam angles in one single lamp/luminaire. It offers high flexibility of changing the beam angles onsite for different application requirements.
