Dual Beam Technology

Beam 60

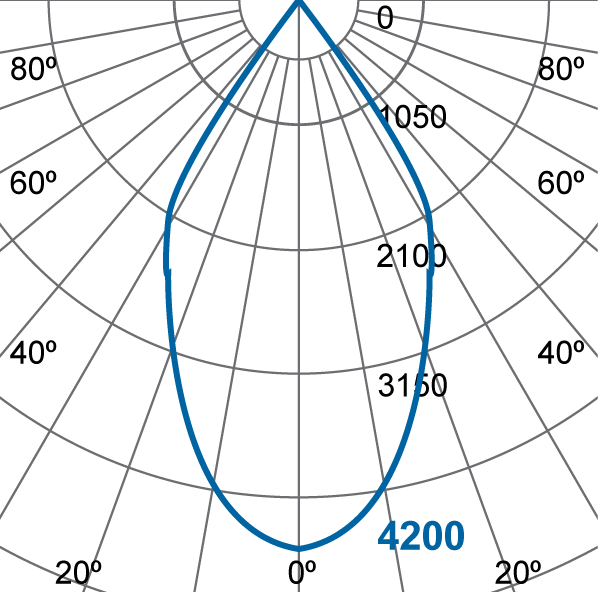

Photometric Diagram

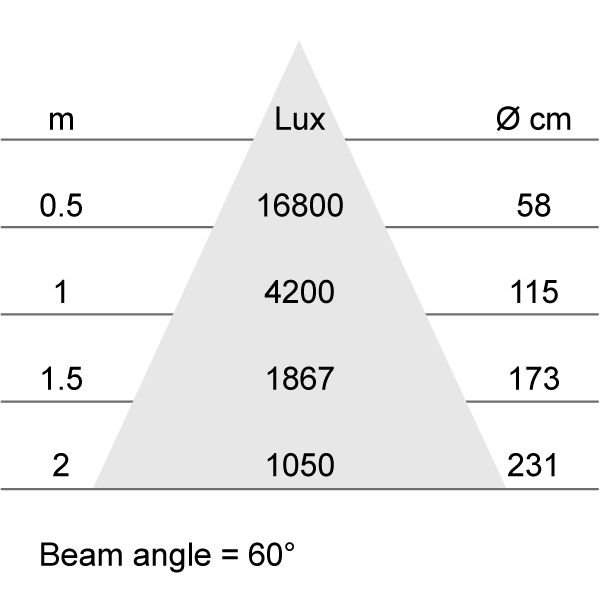

Lux-cone Diagram
     Family Datasheet
     Product Datasheet
Model no.:


Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60 Hz
Power Factor (λ) >0.9
Product Data
Product Wattage (W) 37
Light Source Integrated LED-6500
Colour Render Index (Ra) ≥ Ra80
Protection Class CL I
Colour Consistency (SDCM) ≤4
Operating Temperature -30°C to +40°C
Switching Cycles (times) 100000
Weight (g) 740
Application Hotels, Museums, Restaurants, Shop Lighting, Showrooms
Performance Data
Luminous Flux (lm) 3500
Luminous Efficacy (lm/W) 95
IP Rating IP20/IP20
Product Dimensions
Diameter (mm) 90
Height (mm) 196


  • Dual Beam Technology
    The innovative Dual Beam Technology empowers commercial users to have two beam angles in one single lamp/luminaire. It offers high flexibility of changing the beam angles onsite for different application requirements.
