Please open the web page in browser.ZEKI Ø111 Multi-head Gimbal Adjustable Recessed Downlight (TECOH THx)
Download DIALux Plug-in for Luminaires
Specification Sheet
F56453RC
| Product Data | |
| Light Source | TECOH THx LED Modules |
| Tilting Angle (°) | 30 |
| Colour | White (WH26), Silver (SV26), Black (BK24) |
| Materials | Die-cast Aluminium |
| Dimmable | N/A |
| Performance Data | |
| IP Rating | IP23 |
| Product Dimensions | |
| Length (mm) | 322 |
| Width (mm) | 176 |
| Height (mm) | 101 |
| Cut-out (mm) | L306 x W160 |
|
Remarks Accessory: LA10023 Colour trim for TECOH® THx (optional) When MEGAMAN® ZEKI Ø111 works with TECOH® THx LED modules, it is a Class II luminaire. A dimming feature is available and performance can be enhanced by driver choice, please contact us for details. |
|
Suggested Light Sources
TH0520-24D
Voltage (V): DC 35V
Constant Current (mA): 700
Wattage (W): 25
Max. Luminous Intensity (cd): 10200
Luminous Flux (lm): 2000
Voltage (V): DC 35V
Constant Current (mA): 700
Wattage (W): 25
Max. Luminous Intensity (cd): 10200
Luminous Flux (lm): 2000
TH0532-24D
Voltage (V): DC 33V
Constant Current (mA): 1050
Wattage (W): 35
Max. Luminous Intensity (cd): 16300
Luminous Flux (lm): 3200
Voltage (V): DC 33V
Constant Current (mA): 1050
Wattage (W): 35
Max. Luminous Intensity (cd): 16300
Luminous Flux (lm): 3200
TH0520-45D
Voltage (V): DC 35V
Constant Current (mA): 700
Wattage (W): 25
Max. Luminous Intensity (cd): 4450
Luminous Flux (lm): 2000
Voltage (V): DC 35V
Constant Current (mA): 700
Wattage (W): 25
Max. Luminous Intensity (cd): 4450
Luminous Flux (lm): 2000

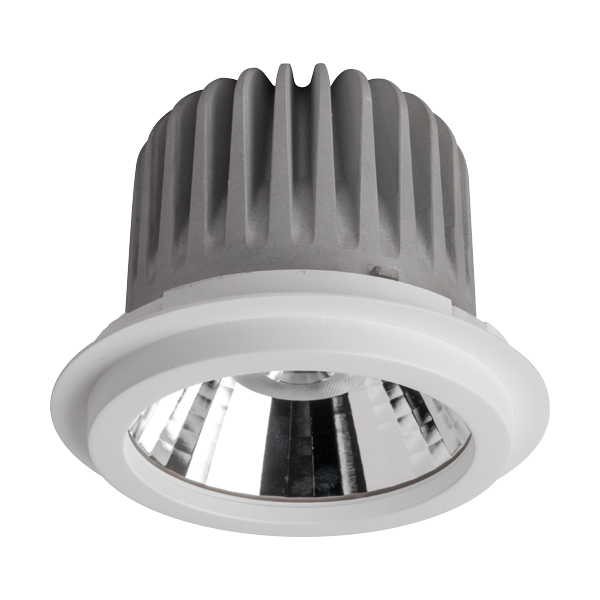

TH0532-45D
Voltage (V): DC 33V
Constant Current (mA): 1050
Wattage (W): 35
Max. Luminous Intensity (cd): 7100
Luminous Flux (lm): 3200
Voltage (V): DC 33V
Constant Current (mA): 1050
Wattage (W): 35
Max. Luminous Intensity (cd): 7100
Luminous Flux (lm): 3200
