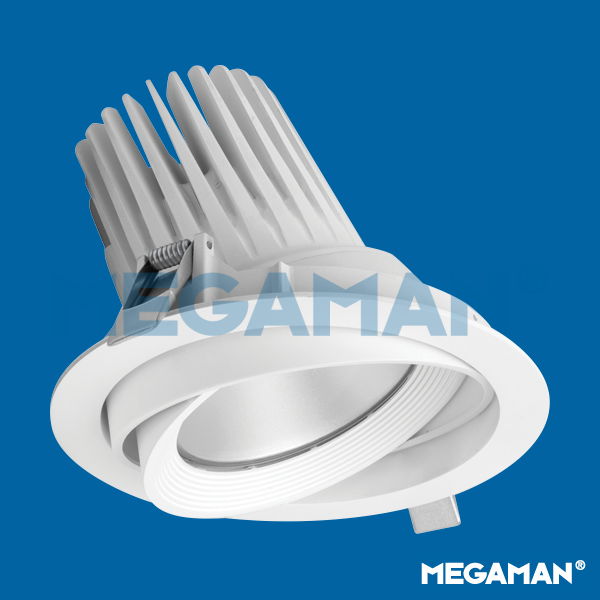

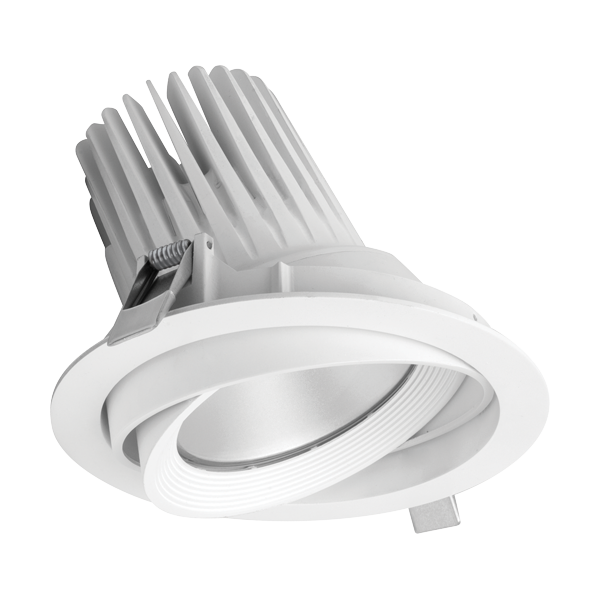

VITO Adjustable Recessed Downlight (RDx) DIMMABLE

Luminaire with LED Module TECOH^® RDx RD0555M (1400mA)

F52349RC-35°

F52349RC-60°

Model no.:

Electrical Data
Nominal Voltage (V)	DC 43- 48V
Input Current (mA)	1400
Product Data
Product Wattage (W)	60
Light Source	TECOH® RDx RD0555M with input current 1400mA
Beam Angle (°)	35, 60
Tilting Angle (°)	30
Colour Temperature (K)	Warmwhite (3000K), Coolwhite (4000K)
Colour Render Index (Ra)	Ra82
Colour	White (WH26), Silver (SV26)
Materials	Metal housing
Protection Class	Class III
Dimmable	Yes
Built-in Cooling	Passive
Suggested Driver	LA11023
Weight (g)	1304
Application	Commercial buildings, Department Stores, Exhibition Booths, Galleries and Museums, Shops and Boutiques
Performance Data
Max. Luminous Intensity (cd)	13000 [35°], 6600 [60°]
Luminous Flux (lm)	5100 [3000K], 5600 [4000K]
Luminous Efficacy (lm/W)	85 [3000K], 93 [4000K]
Rated Life (hrs)	50000
IP Rating	IP20
Product Dimensions
Diameter (mm)	170
Height (mm)	135
Cut-out (mm)	Ø155
Remarks Capable of linear dimming when working with DALI, DSI or 1-10V dimming driver, and the dimming performance depends on the specification of driver. The wattage declared is the wattage of the luminaire without driver; the system wattage will be dependent on driver choice.

Indoor
