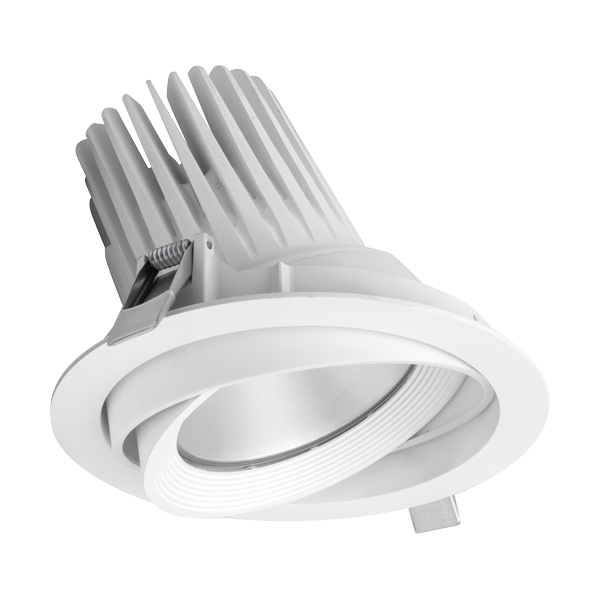

VITO Adjustable Recessed Downlight (RDx) DIMMABLE

White (WH26)
Silver (SV26)
Beam 35
Beam 60
Tilt 30
Class III

Luminaire with LED Module TECOH® RDx RD0555M (1400mA)
Photometric Diagram
Lux-cone Diagram
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:


Electrical Data
Nominal Voltage (V) DC 43- 48V
Input Current (mA) 1400
Product Data
Product Wattage (W) 60
Light Source TECOH® RDx RD0555M with input current 1400mA
Beam Angle (°) 35, 60
Tilting Angle (°) 30
Colour Temperature (K) Warmwhite (3000K), Coolwhite (4000K)
Colour Render Index (Ra) Ra82
Colour White (WH26), Silver (SV26)
Materials Metal housing
Protection Class Class III
Dimmable Yes
Built-in Cooling Active
Suggested Driver LA11023
Weight (g) 1119
Application Commercial buildings, Department Stores, Exhibition Booths, Galleries and Museums, Shops and Boutiques
Performance Data
Max. Luminous Intensity (cd) 13000 [35°], 6600 [60°]
Luminous Flux (lm) 5100 [3000K], 5600 [4000K]
Luminous Efficacy (lm/W) 85 [3000K], 93 [4000K]
Rated Life (hrs) 50000
IP Rating IP20

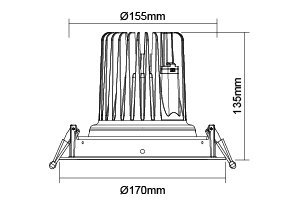

Product Dimensions
Diameter (mm) 170
Height (mm) 135
Cut-out (mm) Ø155
Capable of linear dimming when working with DALI, DSI or 1-10V dimming driver, and the dimming performance depends on the specification of driver. The wattage declared is the wattage of the luminaire without driver; the system wattage will be dependent on driver choice.
