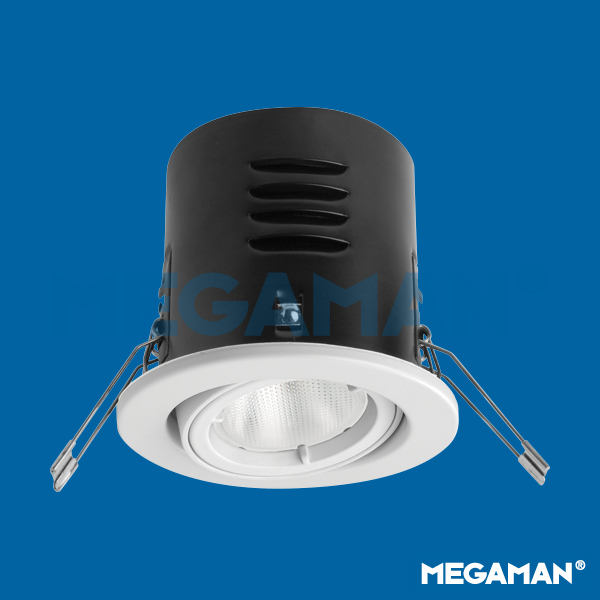

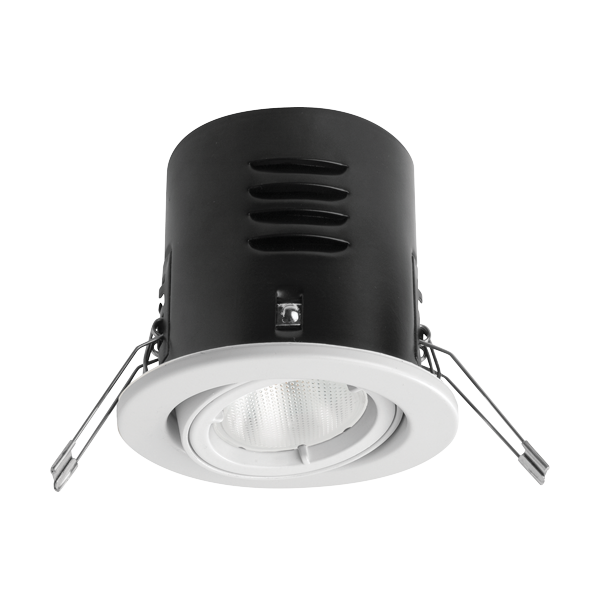

VERSOFIT Adjustable Recessed Downlight (THx)




White (WH26)
Chrome (CH52)
Brushed Nickel (NI53)
Beam 36
Tilt 13
IP20
Class II




Luminaire with LED Light Engine TECOH® THx TH0106d
F28951RC
Photometric Diagram
Lux-cone Diagram
Model no.:

F28951RC

Product Data
Max. Wattage (W) 8
Light Source TECOH® THx TH0106d
Beam Angle (°) 36
Tilting Angle (°) 13
Colour White (WH26), Chrome (CH52), Brushed Nickel (NI53)
Materials Steel body
Protection Class Class II
Dimmable N/A
Weight (g) 340
Application Corridors, Hotels, Kitchens, Offices, Restaurants
Performance Data
IP Rating IP20

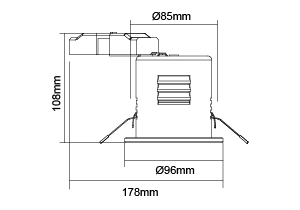

Product Dimensions
Diameter (mm) 96
Length (mm) 178
Height (mm) 108
Cut-out (mm) Ø85
