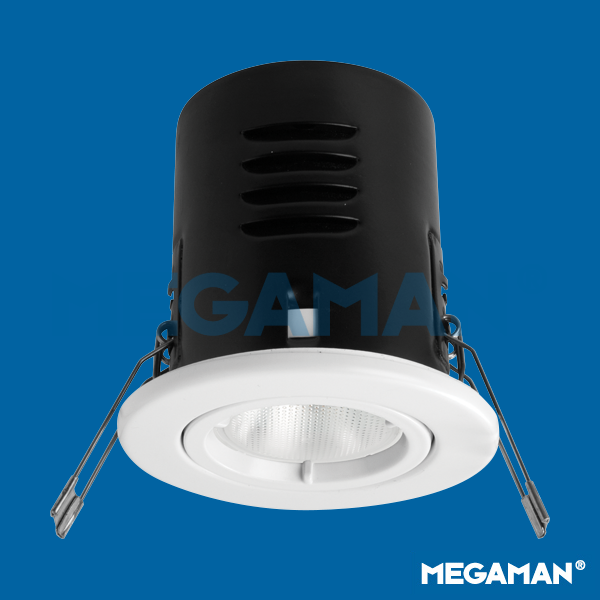

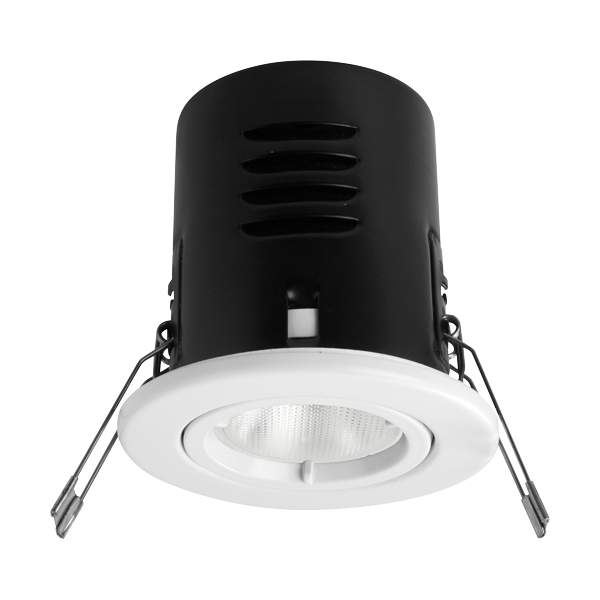

VERSOFIT Recessed Downlight (THx)




White (WH26)
Chrome (CH52)
Brushed Nickel (NI53)
Beam 36
IP20
Class II




Luminaire with LED Light Engine TECOH® THx TH0106d
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:

F28851RC

Product Data
Max. Wattage (W) 8
Light Source TECOH® THx TH0106d
Beam Angle (°) 36
Colour White (WH26), Chrome (CH52), Brushed Nickel (NI53)
Materials Steel body
Protection Class Class II
Dimmable N/A
Weight (g) 235
Application Corridors, Hotels, Kitchens, Offices, Restaurants
Performance Data
IP Rating IP20

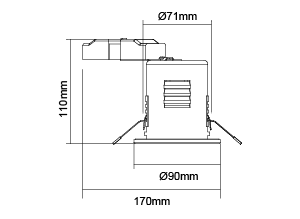

Product Dimensions
Diameter (mm) 90
Length (mm) 170
Height (mm) 110
Cut-out (mm) Ø71

Suggested Light Sources

TH0106d-36D
Voltage (V):  220-240V
Wattage (W):  8
Max. Luminous Intensity (cd):  650
Luminous Flux (lm):  600 - 630
