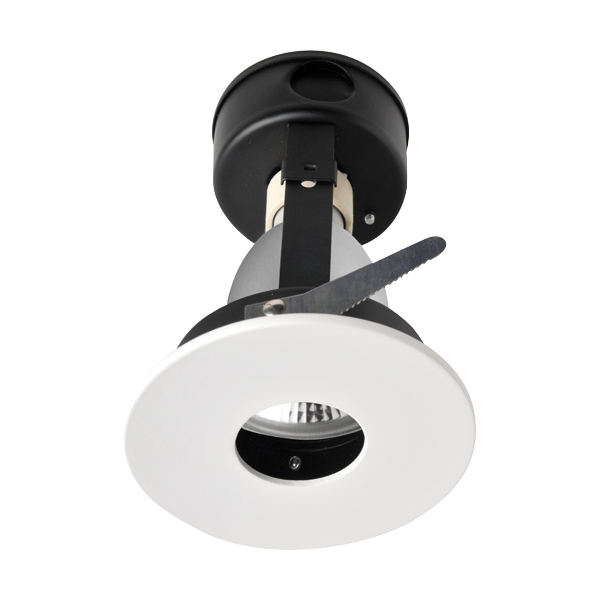

VERONA Recessed Downlight (PAR16) - Pin Hole

Max. 8W LED PAR16 GU10

Specification Sheet

Product Code:

Product Data
Max. Wattage (W)	8
Light Source	LED PAR16
Lamp Base	GU10
Colour	White (WH21)
Materials	Aluminium
Protection Class	Class I
Dimmable	N/A
Weight (g)	245
Application	Corridors, Elevators, Hotels, Light Troughs, Offices, Shops
Performance Data
IP Rating	IP20

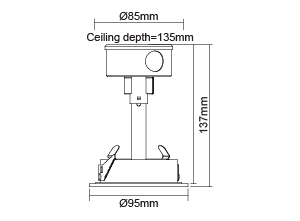

Product Dimensions
Diameter (mm)	95
Height (mm)	137
Cut-out (mm)	Ø85

24° 35° 40° 60° 90°

LR4407-50H24D
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  2200

LR4407d-50H24D
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  2200

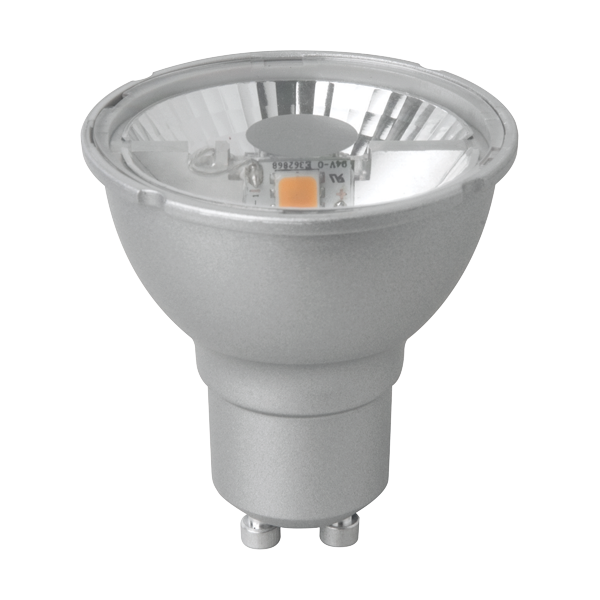

LR4204.5-35H24D
Voltage (V):  220-240V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  1300

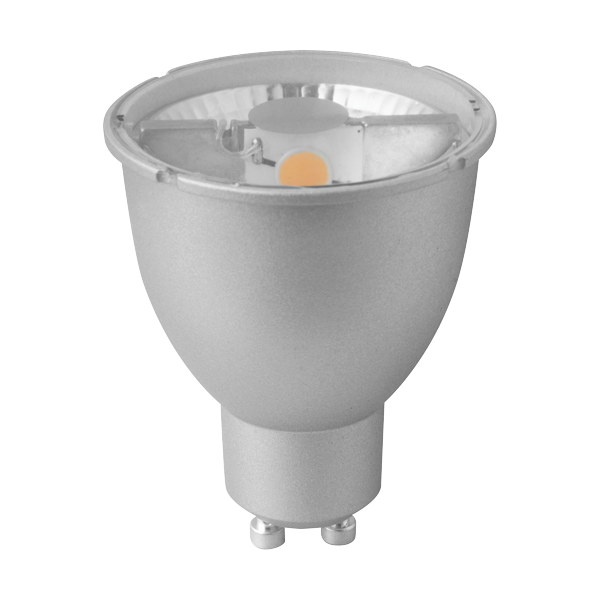

LR4407-50H35D
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  1200

LR4407d-50H35D
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  1200

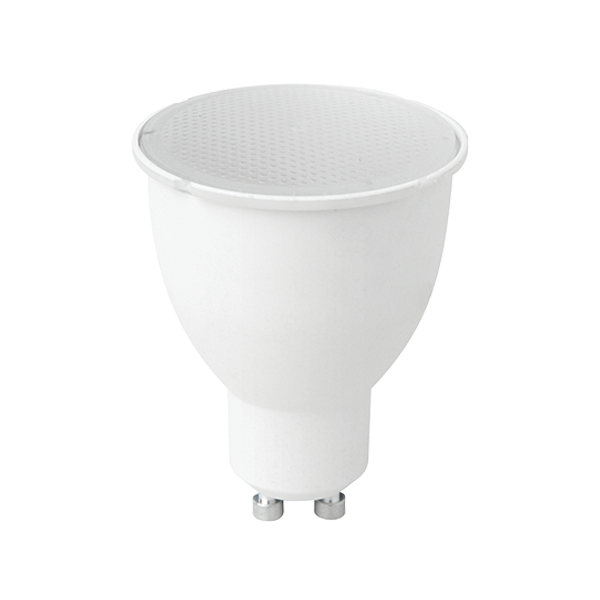

LR3808dBT-WFL
Voltage (V):  220-240V
Wattage (W):  8
Max. Luminous Intensity (cd):  750

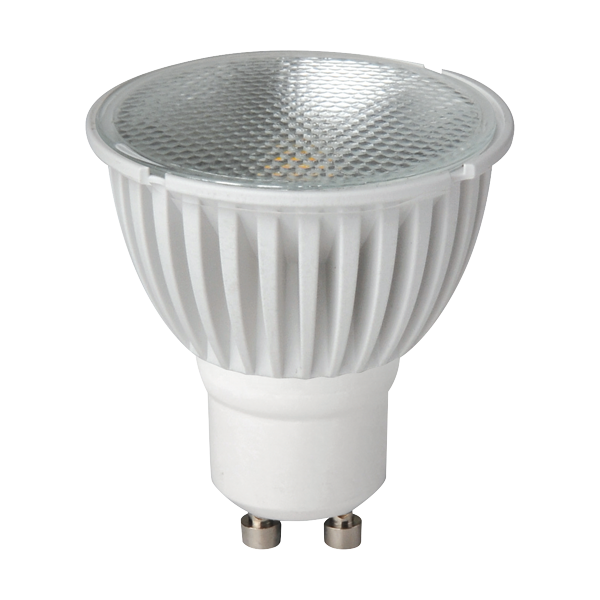

LR2307dDG-WFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  650

LR2307DG-WFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  650

LR2104.5DG-WFL
Voltage (V):  220-240V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  600

LR4204.5-35H35D
Voltage (V):  220-240V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  600

LR2104DG-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  560

LR1206dDGv2-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  500

LR4604DG-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  500

LR5006wDG-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  480

LR1204DGv2-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  300

LR1204dDGv2-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  300

More Options

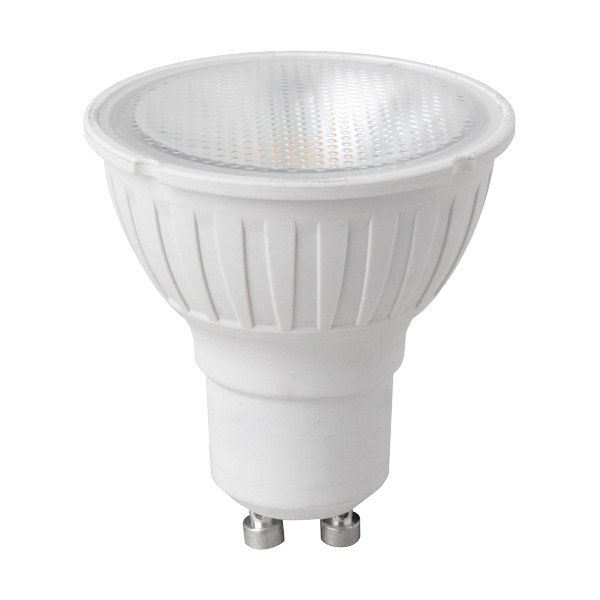

LR4605DG-WFL
Voltage (V):  220-240V
Wattage (W):  5
Max. Luminous Intensity (cd):  560

LR4607DG-WFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  540

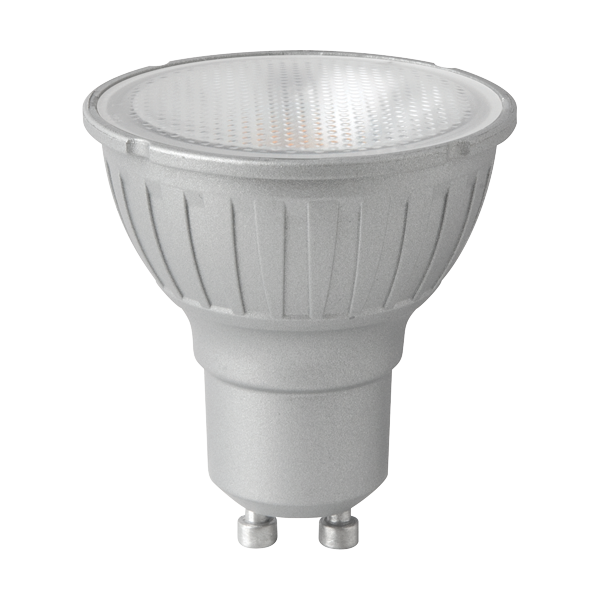

LR4606dDG-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  480

LR2106sDG-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  480

LR2105dDG-WFL
Voltage (V):  220-240V
Wattage (W):  5
Max. Luminous Intensity (cd):  480

LR2105sDG-WFL
Voltage (V):  220-240V
Wattage (W):  5
Max. Luminous Intensity (cd):  350

More Options

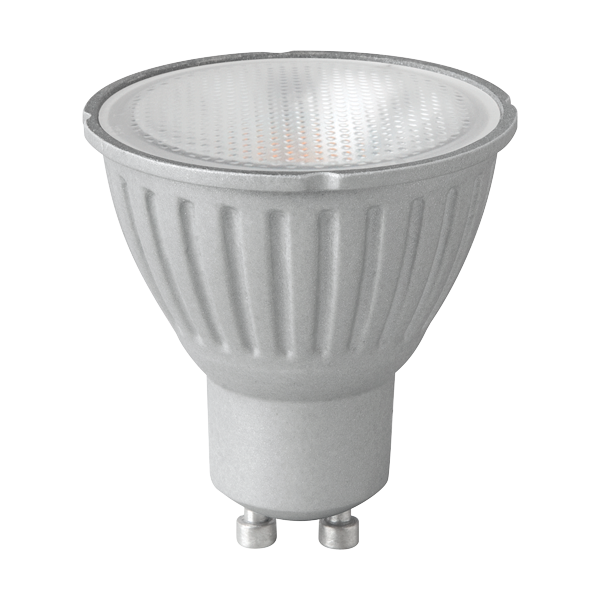

LR5007dDG-VWFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  360

LR2307dDG-VWFL
Voltage (V):  220-240V
Wattage (W):  7
Max. Luminous Intensity (cd):  300

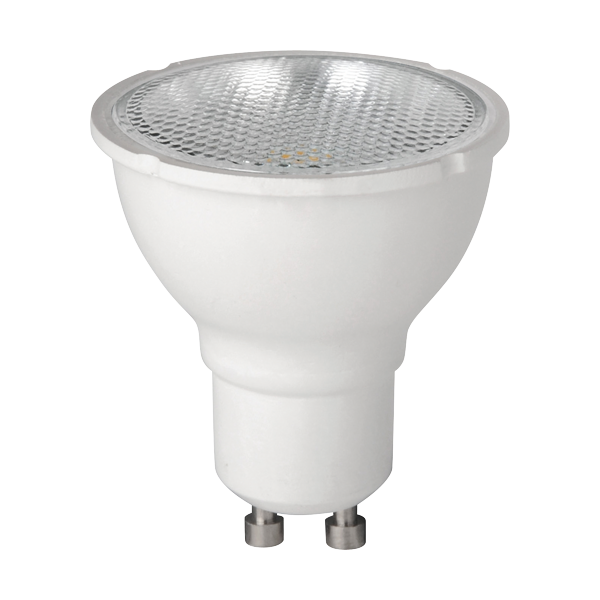

LR2104DG-VWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  300

LR1206dDGv2-VWFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  240

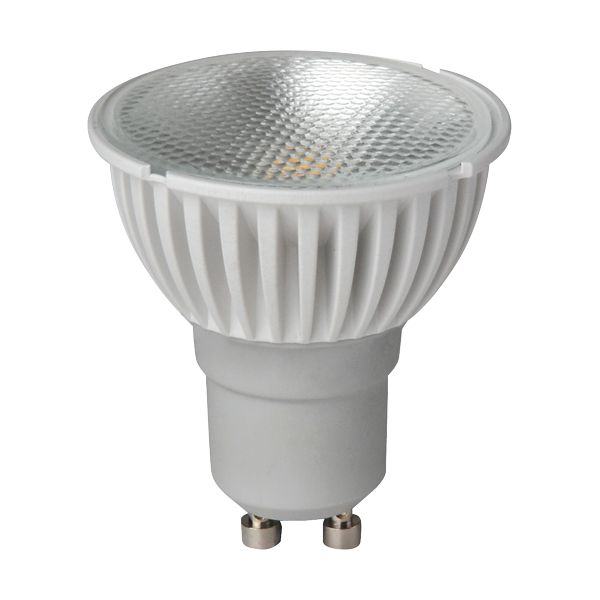

LR1204DGv2-VWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  200

LR1204dDGv2-VWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  200

More Options

LR2104DG-SWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  160
