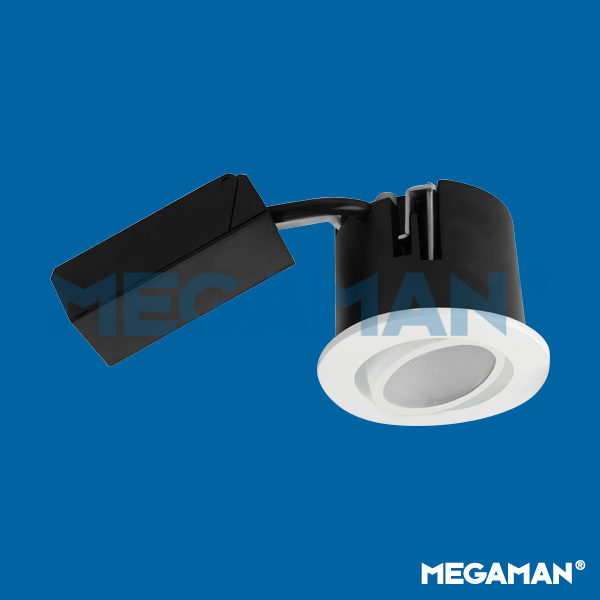

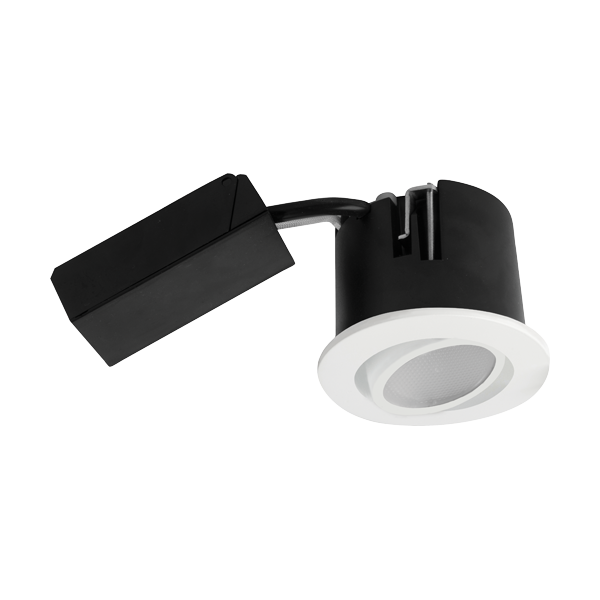

SIRA Adjustable Recessed Downlight (PAR16)


     Specification Sheet
Product Code:

F52517RC

Product Data
Max. Wattage (W) 6
Light Source LED PAR16
Lamp Base GU10
Tilting Angle (°) 25
Colour White (WH26), Brushed Nickel (NI53)
Materials Steel body
Protection Class Class II
Dimmable N/A
Weight (g) 140
Application Conference Rooms, Corridors, Hotels, Offices, Restaurants, Shops
Performance Data
IP Rating IP44

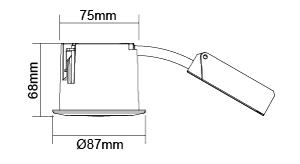

Product Dimensions
Diameter (mm) 87
Height (mm) 68
Cut-out (mm) Ø75
Remarks

Insulation materials can directly cover the MEGAMAN® SIRA F52517RC only when the
MEGAMAN® SIRA is working with the following models:
LR1204dDGv2-WFL, LR1204dDGv2-VWFL, LR2104DG-WFL, LR2104DG-VWFL,
LR1206dDGv2-WFL, LR1206dDGv2-VWFL, LR5906dHR-75H24D and LR5906dHR-75H35D

Suggested Light Sources

LR4204.5-35H24D
Voltage (V):  220-240V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  1300
LR1204dDGv2-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  300
LR1204DGv2-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  300
LR1206dDGv2-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  500
LR2104DG-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  560

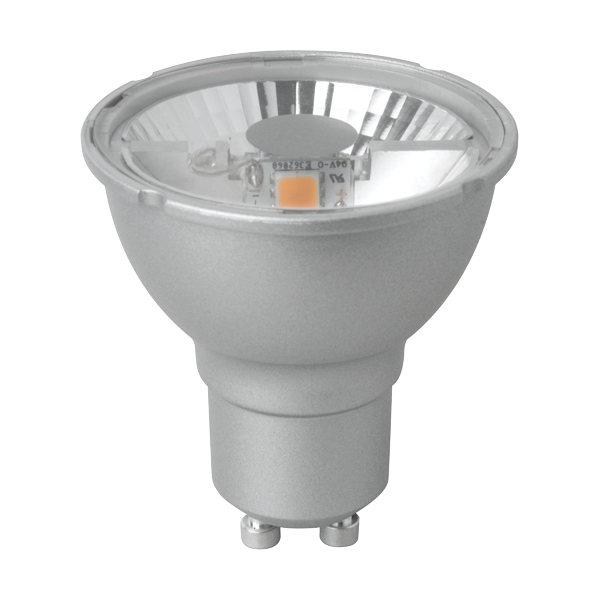

LR4204.5-35H35D
Voltage (V):  220-240V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  600
LR4604DG-WFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  500
LR5006wDG-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  480
LR2104.5DG-WFL
Voltage (V):  220-240V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  600
LR2105dDG-WFL
Voltage (V):  220-240V
Wattage (W):  5
Max. Luminous Intensity (cd):  480
LR2105sDG-WFL
Voltage (V):  220-240V
Wattage (W):  5
Max. Luminous Intensity (cd):  350
LR2106sDG-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  480
LR4605DG-WFL
Voltage (V):  220-240V
Wattage (W):  5
Max. Luminous Intensity (cd):  560
LR4606dDG-WFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  480
LR1204dDGv2-VWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  200
LR1204DGv2-VWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  200
LR1206dDGv2-VWFL
Voltage (V):  220-240V
Wattage (W):  6
Max. Luminous Intensity (cd):  240
LR2104DG-VWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  300
LR2104DG-SWFL
Voltage (V):  220-240V
Wattage (W):  4
Max. Luminous Intensity (cd):  160
