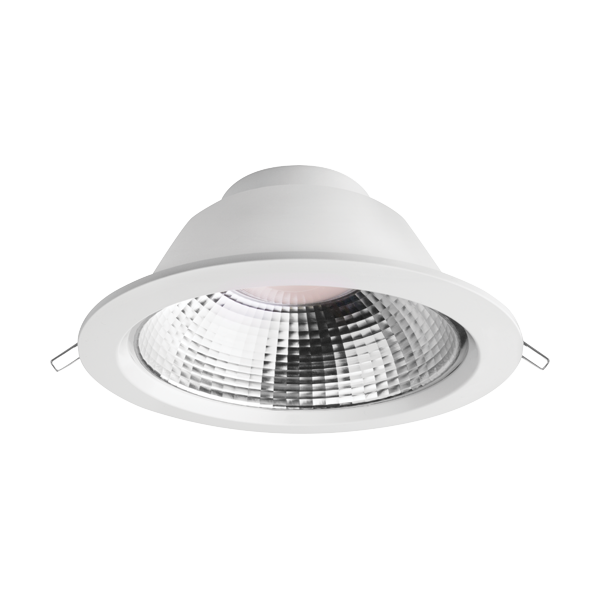

Please open the web page in browser.U-DIM-SIENA FR Recessed Downlight (Integrated) DIMMABLE
Recommended Dimmers
F54700RC-d
| Electrical Data | |
| Voltage (V) | 220-240V |
| Power Factor (λ) | > 0.9 |
| Product Data | |
| Product Wattage (W) | 16.5 |
| Colour Temperature (K) | Warmwhite (2800K), Coolwhite (4000K), Daylight (6500K) |
| Colour Render Index (Ra) | > Ra80 |
| Colour | White (WH26), Silver (SV26) |
| Materials | Die-cast aluminium trim with specular reflector |
| Protection Class | Class II |
| Dimmable | 100-5% |
| Performance Data | |
| Luminous Flux (lm) | 1560 |
| Luminous Efficacy (lm/W) | 95 |
| Rated Life (hrs) | 50000 |
| IP Rating | IP44 |
| Product Dimensions | |
| Diameter (mm) | 172 |
| Height (mm) | 94 |
| Cut-out (mm) | Ø150 |
|
Remarks UGR≤22 Shielding Angle: Up to 25° Capable of linear dimming from 100% to 5% when working with most conventional dimmers |
|
Technologies
-
Compatible with the widest range of existing dimmers, whether they are leading-edge or trailing edge dimmers, with enhanced dimming range of 100% down to 5%.
