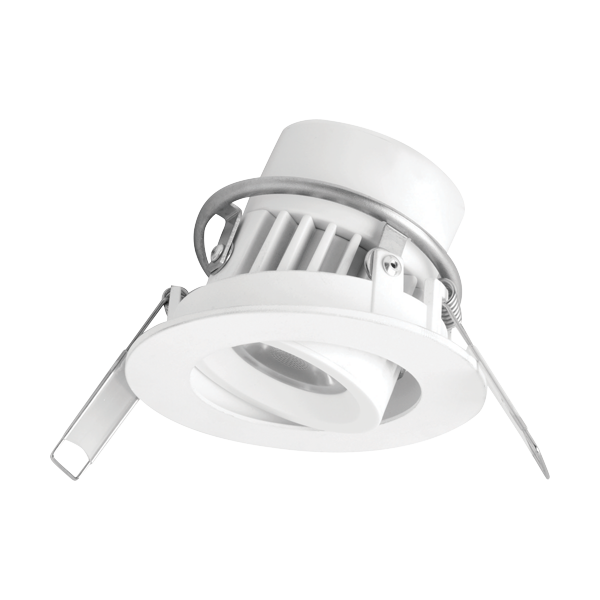

Please open the web page in browser.SIENA Adjustable Recessed Downlight (Integrated) DIMMABLE
Product Catalogue
F28100RC-d
| Electrical Data | |
| Voltage (V) | 220-240V |
| Product Data | |
| Product Wattage (W) | 8 |
| Beam Angle (°) | 24, 36 |
| Tilting Angle (°) | 25 |
| Colour Temperature (K) | Warmwhite (2800K), Coolwhite (4000K) |
| Colour Render Index (Ra) | > Ra80 |
| Colour | White (WH26), Silver (SV26), Brushed Nickel (NI53) |
| Materials | Metal housing with diffuser |
| Protection Class | Class II |
| Dimmable | 100-10% |
| Weight (g) | 206 |
| Performance Data | |
| Max. Luminous Intensity (cd) | 3300 [24°], 1800 [36°] |
| Luminous Flux (lm) | 500 |
| Luminous Efficacy (lm/W) | 63 |
| Rated Life (hrs) | 25000 |
| IP Rating | IP44 |
| Product Dimensions | |
| Diameter (mm) | 80 |
| Height (mm) | 55 |
| Cut-out (mm) | Ø68 |
|
Remarks Capable of linear dimming from 100% to 10% when working with most conventional dimmers. Please refer to the compatible dimmer list at www.megaman.cc/user-guide for further details. |
|
