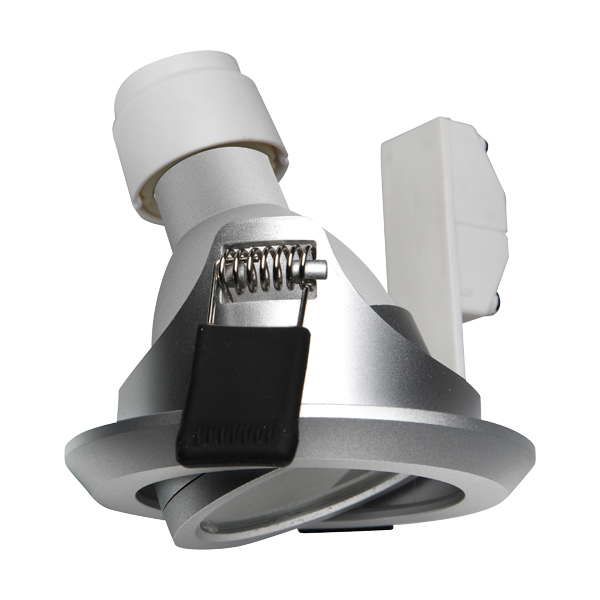

MIRO Adjustable Recessed Downlight (PAR16)




Silver (SV26)
Tilt 30
IP20
Class II




Max. 8W LED PAR16 GU10
F01617RC
Photometric Diagram
Lux-cone Diagram
Model no.:

F01617RC

Product Data
Max. Wattage (W) 8
Light Source LED PAR16
Lamp Base GU10
Tilting Angle (°) 30
Colour Silver (SV26)
Materials Aluminium and polycarbonate
Protection Class Class II
Dimmable N/A
Weight (g) 90
Application Corridors, Elevators, Hotels, Light Troughs, Offices, Shops
Performance Data
IP Rating IP20

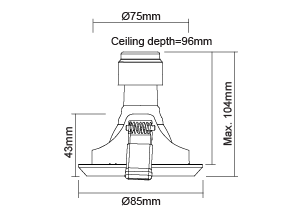

Product Dimensions
Diameter (mm) 85
Height (mm) 43
Cut-out (mm) Ø75
