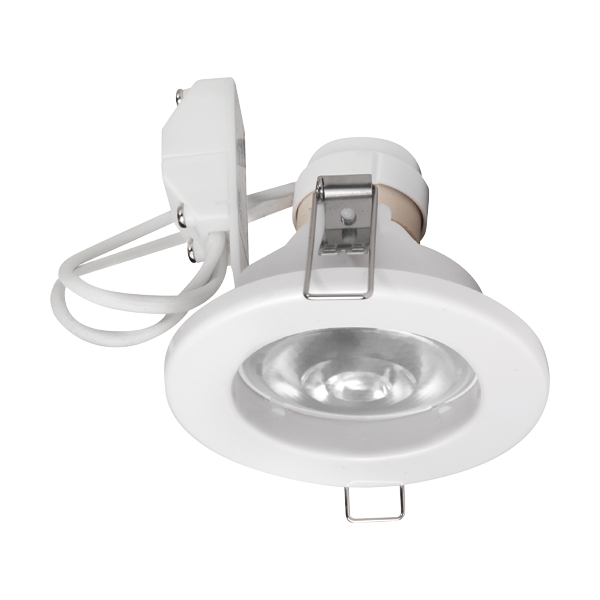

MAX Recessed Downlight (MR16)


     Specification Sheet
Product Code:

F14241RC

Product Data
Max. Wattage (W) 8
Light Source LED MR16
Lamp Base GU5.3
Colour White (WH11), Silver (SV31), Black (BK11), Gold (GD41), Brushed Nickel (NI41)
Materials Polycarbonate
Protection Class Class II
Dimmable N/A
Weight (g) 25
Application Corridors, Elevators, Hotels, Light Troughs, Offices, Shops
Performance Data
IP Rating IP20

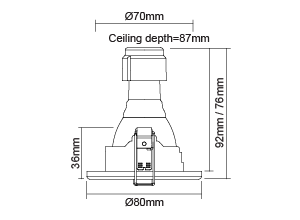

Product Dimensions
Diameter (mm) 80
Height (mm) 36
Cut-out (mm) Ø70

Suggested Light Sources

ER1908d-SP
Voltage (V):  AC 12V
Wattage (W):  8
Max. Luminous Intensity (cd):  3500
ER2607.5LN-FL
Voltage (V):  AC 12V
Wattage (W):  7.5
Max. Luminous Intensity (cd):  2900
ER3308dLN-FL
Voltage (V):  AC 12V
Wattage (W):  8
Max. Luminous Intensity (cd):  3000
ER2508dLN-FL
Voltage (V):  AC 12V
Wattage (W):  8
Max. Luminous Intensity (cd):  2900
ER3207-50H24D
Voltage (V):  AC 12V
Wattage (W):  7
Max. Luminous Intensity (cd):  2000
ER3207.5d-50H24D
Voltage (V):  AC 12V
Wattage (W):  7.5
Max. Luminous Intensity (cd):  2000
ER2404.5-35H24D
Voltage (V):  AC 12V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  1300
ER2607.5LN-WFL
Voltage (V):  AC 12V
Wattage (W):  7.5
Max. Luminous Intensity (cd):  1800
ER2508dLN-WFL
Voltage (V):  AC 12V
Wattage (W):  8
Max. Luminous Intensity (cd):  1600
ER3207-50H36D
Voltage (V):  AC 12V
Wattage (W):  7
Max. Luminous Intensity (cd):  1100
ER3207.5d-50H36D
Voltage (V):  AC 12V
Wattage (W):  7.5
Max. Luminous Intensity (cd):  1100
ER2507.5DG-WFL
Voltage (V):  AC 12V
Wattage (W):  7.5
Max. Luminous Intensity (cd):  800
ER2508dDG-WFL
Voltage (V):  AC 12V
Wattage (W):  8
Max. Luminous Intensity (cd):  800
ER2506DG-WFL
Voltage (V):  AC 12V
Wattage (W):  6
Max. Luminous Intensity (cd):  650
ER2404.5-35H36D
Voltage (V):  AC 12V
Wattage (W):  4.5
Max. Luminous Intensity (cd):  600
ER3406DG-WFL
Voltage (V):  AC 12V
Wattage (W):  6
Max. Luminous Intensity (cd):  500
ER2405DG-WFL
Voltage (V):  AC 12V
Wattage (W):  5
Max. Luminous Intensity (cd):  360
ER3405DG-WFL
Voltage (V):  AC 12V
Wattage (W):  5
Max. Luminous Intensity (cd):  350
ER2404DG-WFL
Voltage (V):  AC 12V
Wattage (W):  4
Max. Luminous Intensity (cd):  260
ER2405DG-VWFL
Voltage (V):  AC 12V
Wattage (W):  5
Max. Luminous Intensity (cd):  240
ER2404DG-WFL
Voltage (V):  AC 12V
Wattage (W):  4
Max. Luminous Intensity (cd):  260
