Please open the web page in browser.MALCOLM Adjustable Recessed Downlight (MR16)
Product Catalogue
Send to DIALux
Download DIALux Plug-in for Luminaires
Specification Sheet
F13441RC
| Product Data | |
| Max. Wattage (W) | 8 |
| Light Source | LED MR16 |
| Lamp Base | GU5.3 |
| Rotating Angle (°) | 330 |
| Tilting Angle (°) | 30 |
| Colour | White (WH24), Silver (SV26), Black (BK23), Gold (GD23) |
| Materials | Aluminium and polycarbonate |
| Protection Class | Class III |
| Dimmable | N/A |
| Weight (g) | 255 |
| Application | Homes, Department Stores, Exhibition Booths, Galleries and Museums, Restaurants, Shops and Boutiques |
| Performance Data | |
| IP Rating | IP20 |
| Product Dimensions | |
| Diameter (mm) | 110 |
| Height (mm) | 100 |
| Cut-out (mm) | Ø96 |
Suggested Light Sources

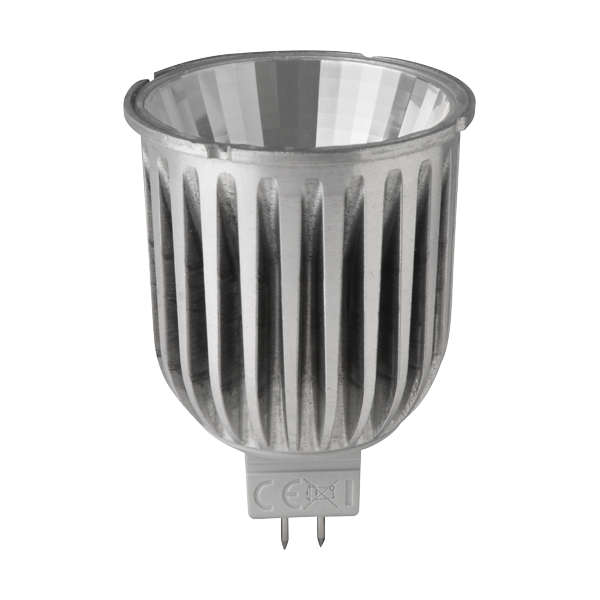

ER1908d-SP
Voltage (V): AC 12V
Wattage (W): 8
Max. Luminous Intensity (cd): 3500
Voltage (V): AC 12V
Wattage (W): 8
Max. Luminous Intensity (cd): 3500
ER2607.5LN-FL
Voltage (V): AC 12V
Wattage (W): 7.5
Max. Luminous Intensity (cd): 2900
Voltage (V): AC 12V
Wattage (W): 7.5
Max. Luminous Intensity (cd): 2900

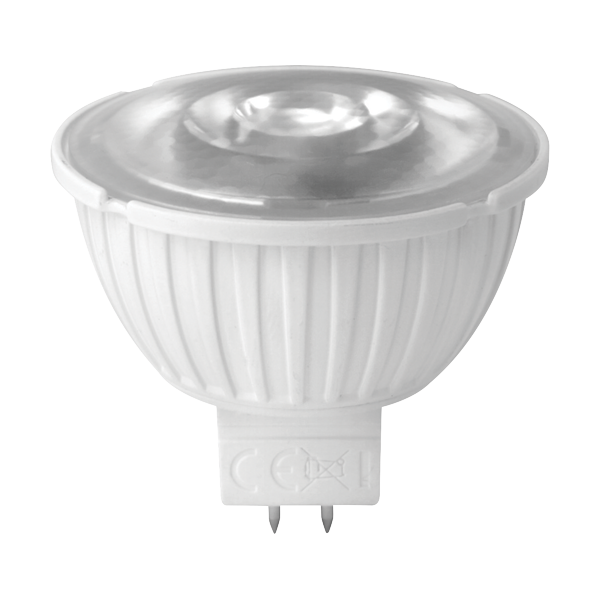

ER3308dLN-FL
Voltage (V): AC 12V
Wattage (W): 8
Max. Luminous Intensity (cd): 3000
Voltage (V): AC 12V
Wattage (W): 8
Max. Luminous Intensity (cd): 3000

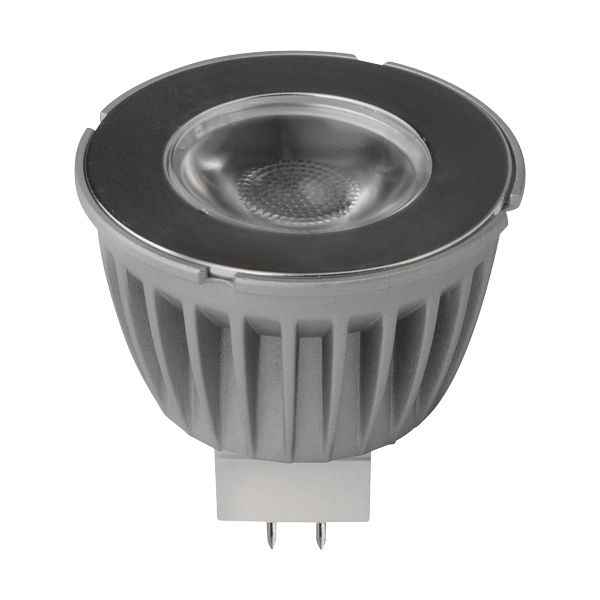

ER2508dLN-FL
Voltage (V): AC 12V
Wattage (W): 8
Max. Luminous Intensity (cd): 2900
Voltage (V): AC 12V
Wattage (W): 8
Max. Luminous Intensity (cd): 2900
ER3207-50H24D
Voltage (V): AC 12V
Wattage (W): 7
Max. Luminous Intensity (cd): 2000
Voltage (V): AC 12V
Wattage (W): 7
Max. Luminous Intensity (cd): 2000
ER3207.5d-50H24D
Voltage (V): AC 12V
Wattage (W): 7.5
Max. Luminous Intensity (cd): 2000
Voltage (V): AC 12V
Wattage (W): 7.5
Max. Luminous Intensity (cd): 2000

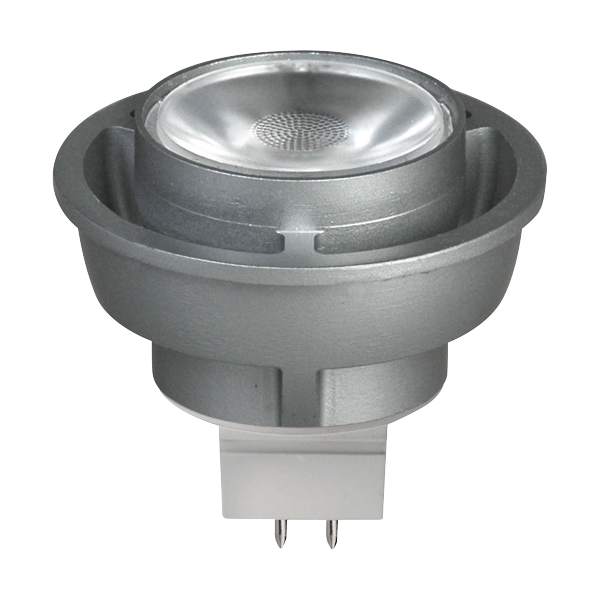

ER2607.5LN-WFL
Voltage (V): AC 12V
Wattage (W): 7.5
Max. Luminous Intensity (cd): 1800
Voltage (V): AC 12V
Wattage (W): 7.5
Max. Luminous Intensity (cd): 1800
ER2508dLN-WFL
Voltage (V): AC 12V
Wattage (W): 8
Max. Luminous Intensity (cd): 1600
Voltage (V): AC 12V
Wattage (W): 8
Max. Luminous Intensity (cd): 1600
ER3207-50H36D
Voltage (V): AC 12V
Wattage (W): 7
Max. Luminous Intensity (cd): 1100
Voltage (V): AC 12V
Wattage (W): 7
Max. Luminous Intensity (cd): 1100

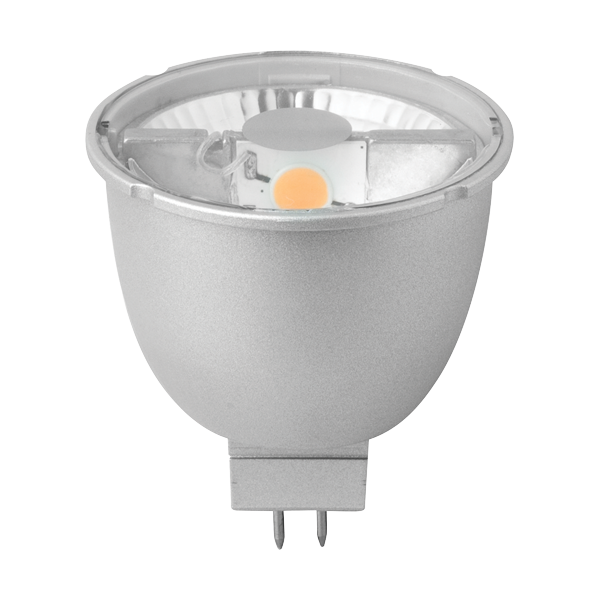

ER3207.5d-50H36D
Voltage (V): AC 12V
Wattage (W): 7.5
Max. Luminous Intensity (cd): 1100
Voltage (V): AC 12V
Wattage (W): 7.5
Max. Luminous Intensity (cd): 1100
ER2507.5DG-WFL
Voltage (V): AC 12V
Wattage (W): 7.5
Max. Luminous Intensity (cd): 800
Voltage (V): AC 12V
Wattage (W): 7.5
Max. Luminous Intensity (cd): 800
ER2405DG-VWFL
Voltage (V): AC 12V
Wattage (W): 5
Max. Luminous Intensity (cd): 240
Voltage (V): AC 12V
Wattage (W): 5
Max. Luminous Intensity (cd): 240

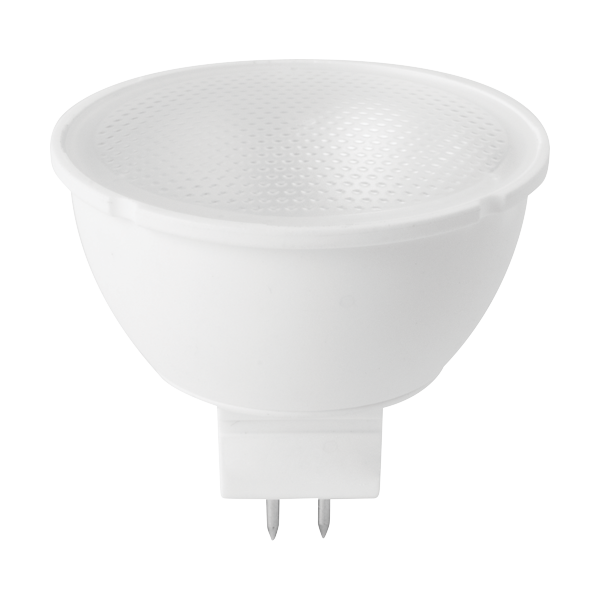

ER2404DG-WFL
Voltage (V): AC 12V
Wattage (W): 4
Max. Luminous Intensity (cd): 260
Voltage (V): AC 12V
Wattage (W): 4
Max. Luminous Intensity (cd): 260
