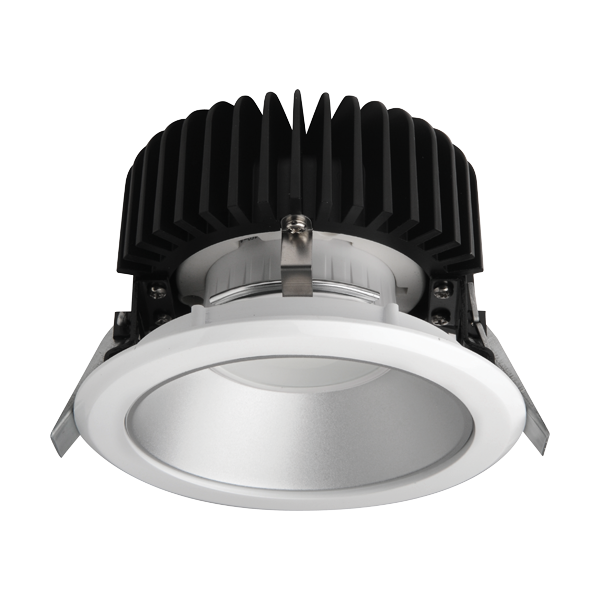

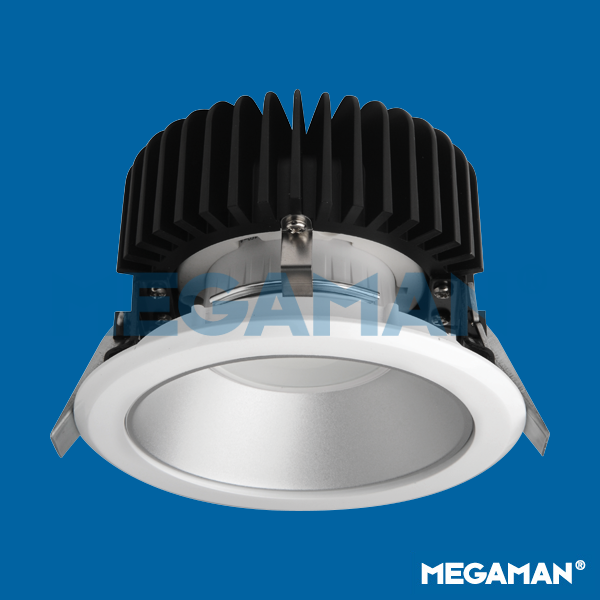

GENOA Recessed Downlight (CFx)




White (WH21)
Silver (SV26)
Black (BK21)
IP20
Class I




Luminaire with LED Light Engine TECOH® CFx Max. 30W
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:

F25245RC

Product Data
Max. Wattage (W) 30
Light Source TECOH® CFx CF0112, CF0112d, CF0120, CF0120d
Lamp Base PHJ65d-2
Colour White (WH21), Silver (SV26), Black (BK21)
Materials Aluminium
Protection Class Class I
Dimmable N/A
Weight (g) 800
Application Corridors, Hotel Lobbies, Reception Areas, Restaurant, Shopping Malls, Supermarkets
Performance Data
IP Rating IP20

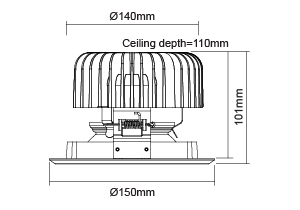

Product Dimensions
Diameter (mm) 150
Height (mm) 101
Cut-out (mm) Ø140
