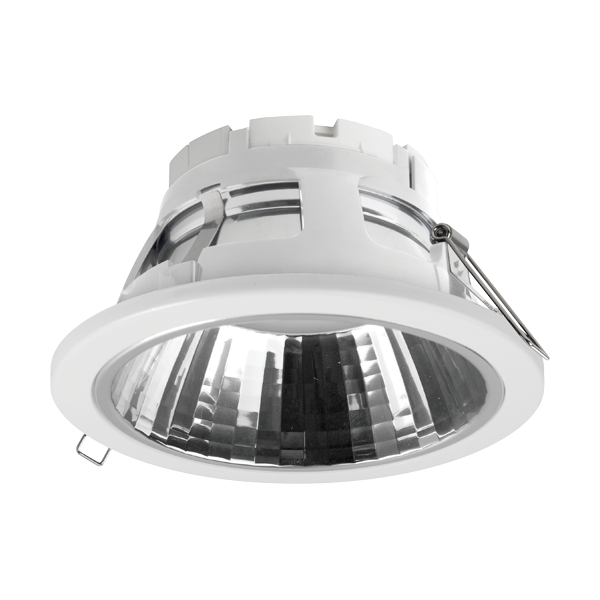

CONXENTO Recessed Downlight (GX53)




White (WH11)
Silver (SV31)
Black (BK12)
Gold (GD31)
IP20
Class II




Max. 7W LED GX53
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:

L0503RC

Product Data
Max. Wattage (W) 7
Light Source LED GX53
Lamp Base GX53
Rotating Angle (°) 330
Tilting Angle (°) 30
Colour White (WH11), Silver (SV31), Black (BK12), Gold (GD31)
Materials Polycarbonate
Protection Class Class II
Dimmable N/A
Weight (g) 105
Application Galleries, Corridors, Hotels, Residential applications, Restaurants, Retail outlets
Performance Data
IP Rating IP20

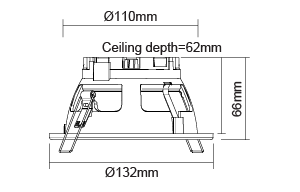

Product Dimensions
Diameter (mm) 132
Height (mm) 66
Cut-out (mm) Ø110

Suggested Light Sources

LR3307
Voltage (V):  220-240V
Wattage (W):  7
LR3307d
Voltage (V):  220-240V
Wattage (W):  7
LR2205d
Voltage (V):  220-240V
Wattage (W):  5
LR2205
Voltage (V):  220-240V
Wattage (W):  5
LR2203.5
Voltage (V):  220-240V
Wattage (W):  3.5
