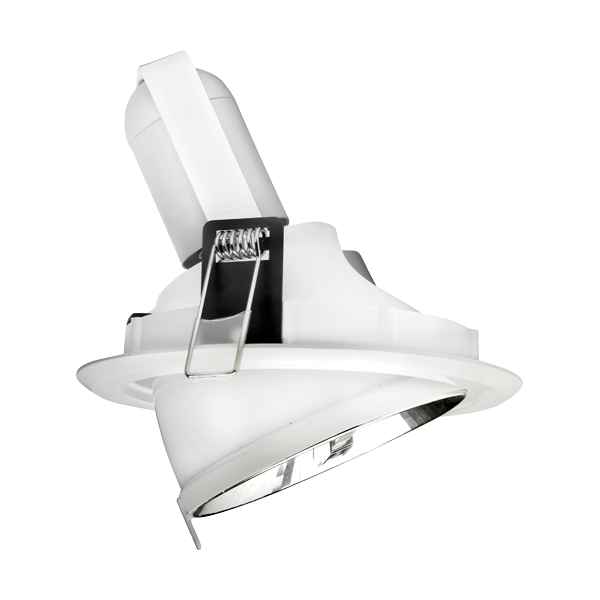

CONXENTO Adjustable Recessed Downlight (PAR30)




White (WH21)
Silver (SV23)
Black (BK21)
Gold (GD21)
Tilt 32
IP20
Class II




Max. 15W LED PAR30 E27
F12301RC
Photometric Diagram
Lux-cone Diagram
Model no.:

F12301RC

Product Data
Max. Wattage (W) 15
Light Source LED PAR30
Lamp Base E27
Tilting Angle (°) 23
Colour White (WH21), Silver (SV23), Black (BK21), Gold (GD21)
Materials Aluminium
Protection Class Class II
Dimmable N/A
Weight (g) 315
Application Galleries, Corridors, Hotels, Residential applications, Restaurants, Retail outlets
Performance Data
IP Rating IP20

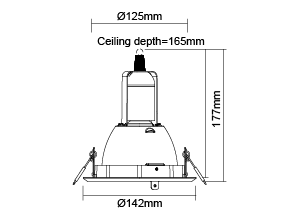

Product Dimensions
Diameter (mm) 142
Height (mm) 177
Cut-out (mm) Ø125
