CARLO Mini Adjustable Recessed Downlight (RDx) - Perfect White DIMMABLE


Perfect White


White (WH26)
Silver (SV26)
Beam 35
Beam 60
Rotate 355
Tilt 45
IP20
Class III




Luminaire with LED Module TECOH® RDx RD0231M-p (700mA)
F51548RC-35°
Photometric Diagram
Lux-cone Diagram
F51548RC-60°
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:

F51549RC-p

Electrical Data
Nominal Voltage (V) DC33- 39V
Input Current (mA) 700
Product Data
Product Wattage (W) 25
Light Source TECOH® RDx RD0231M-p with input current 700mA
Beam Angle (°) 35, 60
Rotating Angle (°) 355
Tilting Angle (°) 45
Colour Temperature (K) Warmwhite (3000K)
Colour Render Index (Ra) Ra82
Colour White (WH26), Silver (SV26)
Materials Metal housing
Protection Class Class III
Dimmable Yes
Suggested Driver LD0425x1-C700
Weight (g) 431
Application Commercial buildings, Department Stores, Exhibition Booths, Galleries and Museums, Shops and Boutiques
Performance Data
Max. Luminous Intensity (cd) 3200 [35°], 2100 [60°]
Luminous Flux (lm) 1800 [3000K]
Luminous Efficacy (lm/W) 72 [3000K]
Rated Life (hrs) 50000
IP Rating IP20

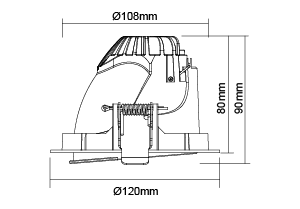

Product Dimensions
Diameter (mm) 120
Height (mm) 90
Cut-out (mm) Ø108
Remarks
Capable of linear dimming when working with DALI, DSI or 1-10V dimming driver, and the dimming performance depends on the specification of driver. The wattage declared is the wattage of the luminaire without driver; the system wattage will be dependent on driver choice. Different reflectors options available: LA3111 35° Reflector, LA3112 60° Reflector

Technologies

  • Perfect White
    Offering retailers a distinct advantage to enhance textiles by bringing whites to life while still offering superb efficacy and energy efficiency, compared to traditional light sources.
