CARLO Mini Adjustable Recessed Downlight (MHx)




White (WH26)
Silver (SV26)
Beam 35
Beam 60
Rotate 355
Tilt 45
IP20
Class III




Luminaire with LED Module TECOH® MHx MH0219 (500mA)
F51548RC-35°
Photometric Diagram
Lux-cone Diagram
F51548RC-60°
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:

F51548RC

Product Data
Product Wattage (W) 19
Light Source TECOH® MHx MH0219 with input current 500mA
Beam Angle (°) 35, 60
Rotating Angle (°) 355
Tilting Angle (°) 45
Colour White (WH26), Silver (SV26)
Materials Metal housing
Protection Class Class III
Dimmable N/A
Weight (g) 431
Application Commercial buildings, Department Stores, Exhibition Booths, Galleries and Museums, Shops and Boutiques
Performance Data
IP Rating IP20

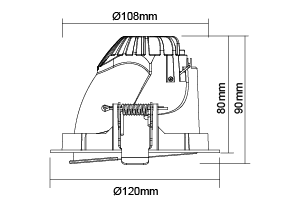

Product Dimensions
Diameter (mm) 120
Height (mm) 90
Cut-out (mm) Ø108
Remarks
Capable of linear dimming when working with DALI, DSI or 1-10V dimming driver, and the dimming performance depends on the specification of driver. The wattage declared is the wattage of the luminaire without driver; the system wattage will be dependent on driver choice. Different reflectors options available: LA3113 35° Reflector, LA3114 60° Reflector
