CARLO Adjustable Recessed Downlight (MHx)




White (WH26)
Silver (SV26)
Beam 35
Beam 60
Rotate 355
Tilt 45
IP20
Class III




Luminaire with LED Module TECOH® MHx MH0130 (700mA)
F28343RC-35°
Photometric Diagram
Lux-cone Diagram
F28343RC-60°
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:

F28343RC

Product Data
Product Wattage (W) 28
Light Source TECOH® MHx MH0130 with input current 700mA
Beam Angle (°) 35, 60
Rotating Angle (°) 355
Tilting Angle (°) 45
Colour White (WH26), Silver (SV26)
Materials Metal housing
Protection Class Class III
Dimmable N/A
Weight (g) 905
Application Commercial buildings, Department Stores, Exhibition Booths, Galleries and Museums, Shops and Boutiques
Performance Data
IP Rating IP20

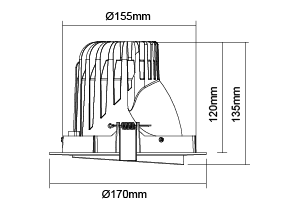

Product Dimensions
Diameter (mm) 170
Height (mm) 135
Cut-out (mm) Ø155
Remarks
Different reflectors options available: LA3109 35° Reflector, LA3110 60° Reflector
