CARLO Adjustable Recessed Downlight (RDx) DIMMABLE


Perfect White


White (WH26)
Silver (SV26)
Beam 35
Beam 60
Rotate 355
Tilt 45
IP20
Class III




Luminaire with LED Module TECOH® RDx RD0343M-p (700mA)
F28249RC-p-35°
Photometric Diagram
Lux-cone Diagram
F28249RC-p-60°
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:

F28249RC-p

Electrical Data
Nominal Voltage (V) DC 40- 46V
Input Current (mA) 700
Product Data
Product Wattage (W) 31
Light Source TECOH® RDx RD0555M-p with input current 700mA
Beam Angle (°) 35, 60
Rotating Angle (°) 355
Tilting Angle (°) 45
Colour Temperature (K) Warmwhite (3000K)
Colour Render Index (Ra) Ra82
Colour White (WH26), Silver (SV26)
Materials Metal housing
Protection Class Class III
Dimmable Yes
Suggested Driver LA11053
Weight (g) 1065
Application Commercial buildings, Department Stores, Exhibition Booths, Galleries and Museums, Shops and Boutiques
Performance Data
Max. Luminous Intensity (cd) 5500 [35°], 3500 [60°]
Luminous Flux (lm) 2400 [3000K]
Luminous Efficacy (lm/W) 77 [3000K]
Rated Life (hrs) 50000
IP Rating IP20

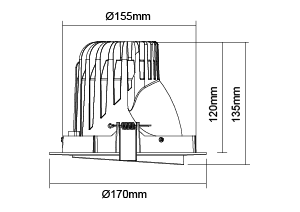

Product Dimensions
Diameter (mm) 170
Height (mm) 135
Cut-out (mm) Ø155
Remarks
Capable of linear dimming when working with DALI, DSI or 1-10V dimming driver, and the dimming performance depends on the specification of driver. The wattage declared is the wattage of the luminaire without driver; the system wattage will be dependent on driver choice. Different reflectors options available: LA3107 35° Reflector, LA3107 60° Reflector

Technologies

  • Perfect White
    Offering retailers a distinct advantage to enhance textiles by bringing whites to life while still offering superb efficacy and energy efficiency, compared to traditional light sources.
