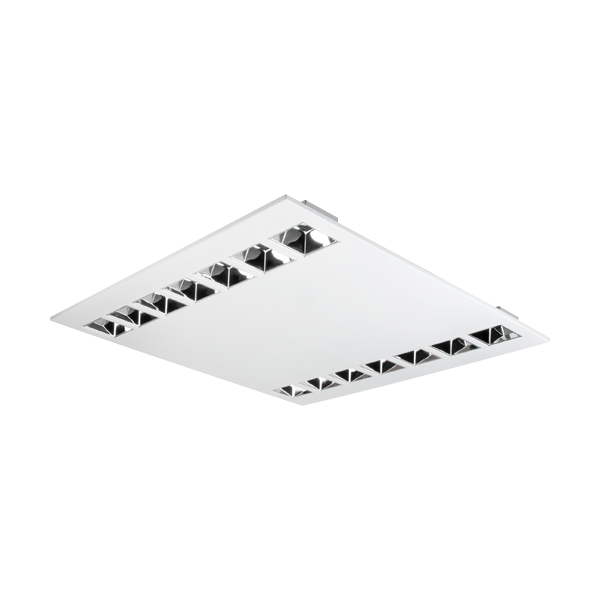

ESTELA Recessed LED Luminaires (Integrated)




White (WH26)
Beam 90
IP20
Class I
UGR<19




Integrated LED Luminaire
FPL62400v0
Photometric Diagram
Lux-cone Diagram
Model no.:

FPL62400v0

Electrical Data
Nominal Voltage (V) 220-240V
Power Factor (λ) > 0.9
Product Data
Beam Angle (°) 90
Colour Temperature (K) Coolwhite (4000K), Daylight (6500K)
System Wattage (W) 30
Colour Render Index (Ra) > Ra80
Colour White (WH26)
Materials Metal housing
Protection Class Class I
Colour Consistency (SDCM) ≤4
Dimmable No
Weight (g) 3311
Application School, Department Stores, Offices
Performance Data
Luminous Flux (lm) 3500
Luminous Efficacy (lm/W) 117
Rated Life (hrs) 50000
Rated Life (hrs) 50000hrs at L80 B10 at Ta 25°C

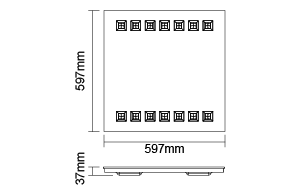

Product Dimensions
Length (mm) 597
Width (mm) 597
Height (mm) 35
Remarks
Model No.: F62400RC
