BERTO Panel (Integrated)


     Specification Sheet
Product Code:

F33500RC

Electrical Data
Nominal Voltage (V) DC 35-39V
Input Current (mA) 1050
Product Data
Product Wattage (W) 39
Colour Temperature (K) Warmwhite (3000K), Coolwhite (4000K), Daylight (6000K)
Colour Render Index (Ra) >Ra80
Colour White (WH26), Silver (SV63)
Materials Aluminium frame and PS diffuser
Protection Class Class III
Dimmable Yes
Suggested Driver LA11069, LA11064
Weight (g) 3115
Application Classrooms, Conference Rooms, Corridors, Offices
Performance Data
Luminous Flux (lm) 3350 [3000K], 3600 [4000K], 3800 [6000K]
Luminous Efficacy (lm/W) 86 [3000K], 92 [4000K], 97 [6000K]
Rated Life (hrs) 50000
IP Rating IP20

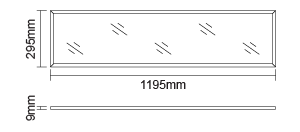

Product Dimensions
Length (mm) 1195
Width (mm) 295
Height (mm) 9
Remarks
Accessories for BERTO LED Panel: LA10026 6-wire Suspension Kits, LA10028 Surface Mounted Kits (with 6 hook kits), LA10031 Security Chain
