BERTO Panel (Integrated)


     Specification Sheet
Product Code:

F33400RC

Electrical Data
Nominal Voltage (V) DC 35-39V
Input Current (mA) 700
Product Data
Product Wattage (W) 26
Colour Temperature (K) Warmwhite (3000K), Coolwhite (4000K), Daylight (6000K)
Colour Render Index (Ra) >Ra80
Colour White (WH26), Silver (SV63)
Materials Aluminium frame and PS diffuser
Protection Class Class III
Dimmable Yes
Suggested Driver LA11072, LA11063
Weight (g) 2758
Application Classrooms, Conference Rooms, Corridors, Offices
Performance Data
Luminous Flux (lm) 2400 [3000K], 2600 [4000K], 2700 [6000K]
Luminous Efficacy (lm/W) 92 [3000K], 100 [4000K], 104 [6000K]
Rated Life (hrs) 50000
IP Rating IP20

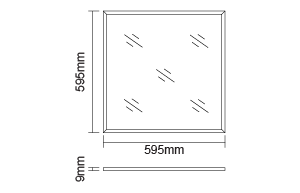

Product Dimensions
Length (mm) 595
Width (mm) 595
Height (mm) 9
Remarks
Accessories for BERTO LED Panel: LA10025 4-wire Suspension Kits, LA10027 Surface Mounted Kits, LA10029 Ceiling Frame, LA10031 Security Chain
