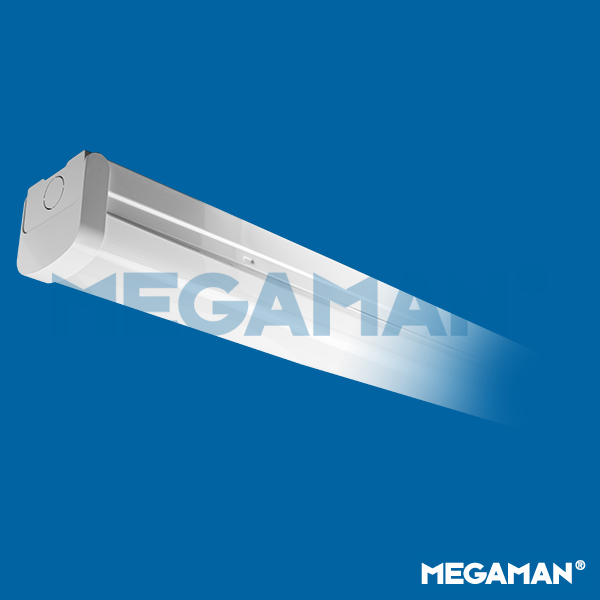

FIB76400v1
Electrical Data | |
Voltage (V) | 220-240V |
Frequency (Hz) | 50/60 |
Input Current (mA) | 240 |
Power Factor (λ) | >0.9 |
Product Data | |
Product Wattage (W) | 60 |
Light Source | Integrated LED-4000 |
Beam Angle (°) | 110 |
Colour Render Index (Ra) | Ra80 |
Colour | White (WH12) |
Protection Class | CL I |
Colour Consistency (SDCM) | 6 |
Dimmable | no |
Energy Label | C |
Operating Temperature | -30°C to +50°C |
Ambient Temperature Range (Ta) | 50 |
Switching Cycles (times) | 100000 |
Application | Corridors, Factories, Residential Lightings, Schools, Warehouses |
Performance Data | |
Luminous Flux (lm) | 7200 |
Rated Useful Luminous Flux (lm) | 9500 |
Luminous Efficacy (lm/W) | 120 |
Rated Life (hrs) | 30,000hrs L70B50@Ta25°C |
IP Rating | IP20/IP20 |
Product Dimensions | |
Length (mm) | 1500 |
Width (mm) | 64 |
Height (mm) | 65 |
