Family Datasheet
Product Datasheet
FIB74200v0
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 |
| Input Current (mA) | 215 |
| Power Factor (λ) | >0.9 |
| Product Data | |
| Product Wattage (W) | 45 |
| Light Source | Integrated LED-3000 |
| Beam Angle (°) | 120 |
| Colour Render Index (Ra) | ≥ Ra80 |
| Colour | Silver (SV12) |
| Protection Class | CL I |
| Colour Consistency (SDCM) | <6 |
| Dimmable | No |
| Operating Temperature | -30°C to +40°C |
| Switching Cycles (times) | 100,000 |
| Weight (g) | 690 |
| Application | Corridors, Factories, Residential Lightings, Warehouses |
| Performance Data | |
| Rated Life (hrs) | 25,000hrs L70B50@Ta25°C |
| IP Rating | IP20/IP20 |

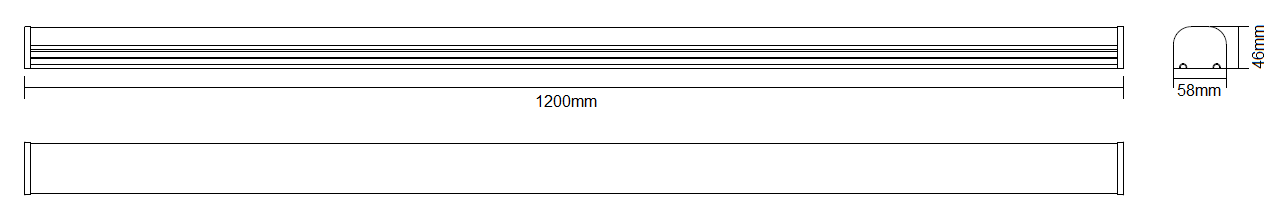

| Product Dimensions | |
| Length (mm) | 1200 |
| Width (mm) | 58 |
| Height (mm) | 46 |
