KARA Floodlight (Integrated)

White (WH26)
Beam 100
Tilt 65
Class III

Integrated LED Luminaire
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:


Electrical Data
Nominal Voltage (V) DC28- 33V
Input Current (mA) 1400
Product Data
Product Wattage (W) 43
Beam Angle (°) 100
Tilting Angle (°) 65
Colour Temperature (K) Warmwhite (3000K), Coolwhite (4000K)
Colour Render Index (Ra) >Ra80
Colour White (WH26)
Materials Aluminium
Protection Class Class III
Dimmable Yes
Suggested Driver LD0448x1-C1400
Weight (g) 1480
Application Galleries, Display Cabinets, Merchandise Tables, Museums, Shops, Wall Lighting
Performance Data
Max. Luminous Intensity (cd) 1900
Luminous Flux (lm) 4100 [3000K], 4500 [4000K]
Luminous Efficacy (lm/W) 95 [3000K], 105 [4000K]
Rated Life (hrs) 25000
IP Rating IP20

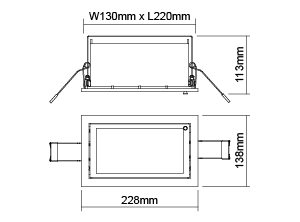

Product Dimensions
Length (mm) 228
Width (mm) 138
Height (mm) 113
Cut-out (mm) W130 x L220
Capable of linear dimming when applying DALI, DSI or 1-10V dimming driver with 3-circuit dimmable adaptor, please contact us for details. The wattage declared is the wattage of the luminaire without driver; the system wattage will be dependent on driver choice.
