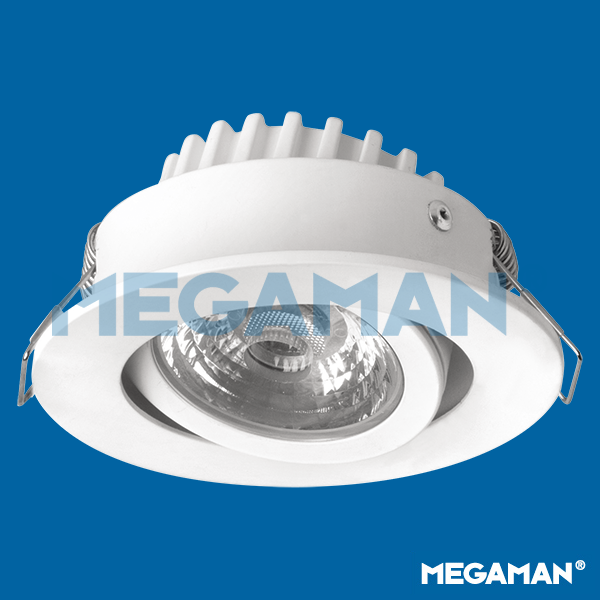

F62300RC-R9
| Electrical Data | |
| Voltage (V) | DC 16-21V |
| Power Factor (λ) | 1 |
| Product Data | |
| Product Wattage (W) | 6.5 |
| Light Source | Integrated LED-2800R9 |
| Colour Render Index (Ra) | Ra95 |
| Protection Class | CL III |
| Colour Consistency (SDCM) | ≤6 |
| Operating Temperature | -30°C to +40°C |
| Weight (g) | 116 |
| Application | Bathrooms, Corridors, Display Shelves, Hotels, Kitchen Cabinets and Counters, Offices, Shopping Malls, Shops, Study Rooms, Wardrobes, Workstations |
| Performance Data | |
| Luminous Flux (lm) | 500 |
| IP Rating | IP20/IP44 |
| Product Dimensions | |
| Diameter (mm) | 80 |
| Height (mm) | 30 |
