Photometric Diagram
Lux-cone Diagram
     Family Datasheet
     Product Datasheet

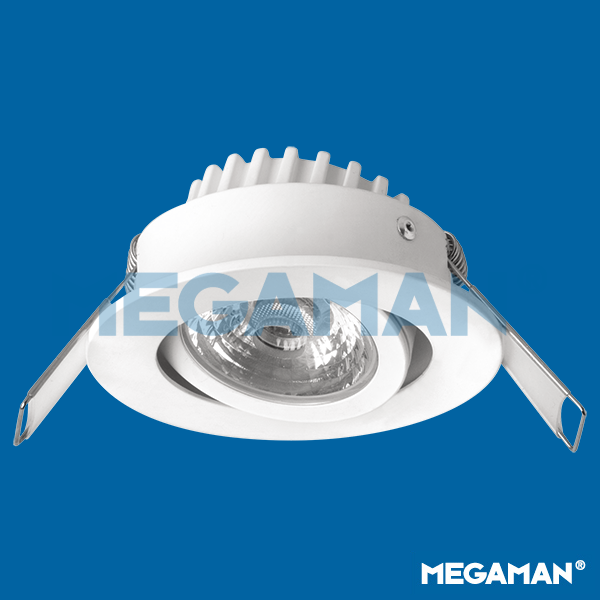

Model no.:

F53500RCv2+LD0512x1d-C500+LA5113

Electrical Data
Voltage (V) 230V
Frequency (Hz) 50/60
Power Factor (λ) >0.9
Product Data
Product Wattage (W) 11
Light Source Integrated LED-4000
Colour Render Index (Ra) Ra80
Protection Class CL II
Colour Consistency (SDCM) ≤6
Operating Temperature -30°C to +40°C
Weight (g) 280
Application Bathrooms, Corridors, Display Shelves, Hotels, Kitchen Cabinets and Counters, Offices, Shopping Malls, Shops, Study Rooms, Wardrobes, Workstations
Performance Data
Luminous Flux (lm) 900
IP Rating IP20/IP44
Product Dimensions
Diameter (mm) 80
Height (mm) 30
