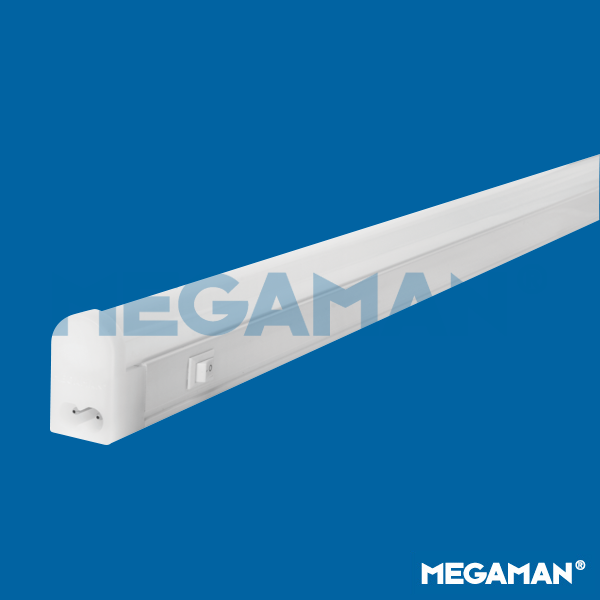

PINOLITE Batten (Integrated)


     Specification Sheet
Product Code:

FIB71400v0

Electrical Data
Voltage (V) 220-240V
Product Data
Product Wattage (W) 3.5
Colour Temperature (K) Warmwhite (3000K), Coolwhite (4000K), Daylight(6500K)
Colour Render Index (Ra) >Ra80
Colour White (WH13)
Materials Polycarbonate
Protection Class Class II
Dimmable No
Operating Temperature -30°C to +40°C
Application Office, Display Shelves, Light Troughs, Shops and Boutiques, Wall Lighting
Performance Data
Luminous Flux (lm) 300 [3000K], 320 [4000K/6500K]
Luminous Efficacy (lm/W) 86 [3000K], 91 [4000K/6500K]
Rated Life (hrs) 35000 hrs at L70 B50 at Ta 25°C (hrs)
IP Rating IP20
Product Dimensions
Length (mm) 280
Width (mm) 23
Height (mm) 39
Remarks
Accessories:
LA8002 1.8 Power Cord
LA8036 150mm Patch Cord
LA8004 Angle Joint for PINOLITE
LA8005 Mounting Clips (Comes with the MEGAMAN® PINOLITE)
LA8039 Female pole protective cap
