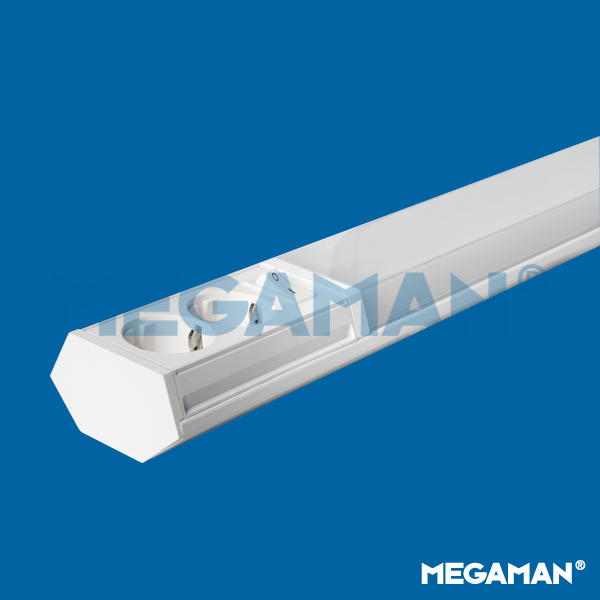

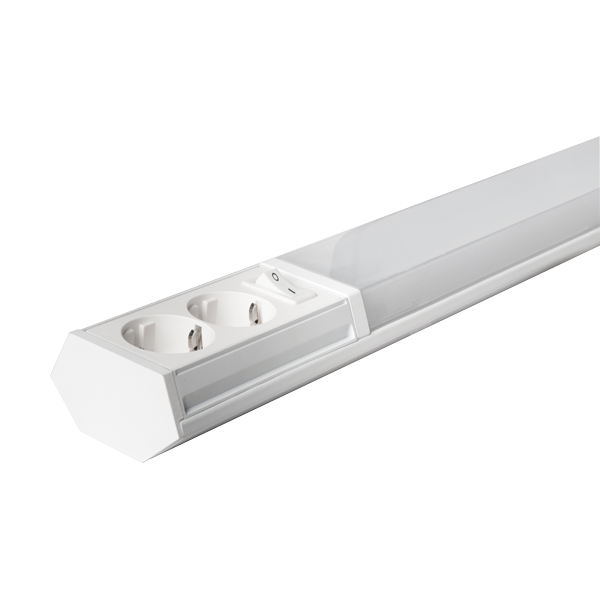

KETO Batten (Integrated)

White (WH26)
Beam 110
Class I

Integrated LED Luminaire
Photometric Diagram
Lux-cone Diagram
     Specification Sheet
Product Code:


Electrical Data
Voltage (V) 220-240V
Product Data
Product Wattage (W) 3
Beam Angle (°) 110
Colour Temperature (K) Warmwhite (2800K), Coolwhite (4000K)
Colour Render Index (Ra) >Ra80
Colour White (WH26)
Materials Aluminium housing with polycarbonate
Protection Class Class I
Dimmable No
Operating Temperature -30°C to +40°C
Weight (g) 605
Application Cabinets, Display Shelves, Kitchens, Light Troughs
Performance Data
Luminous Flux (lm) 300
Rated Life (hrs) 40000
IP Rating IP21
Product Dimensions
Length (mm) 457
Width (mm) 75
Height (mm) 44
