Family Datasheet
     Product Datasheet

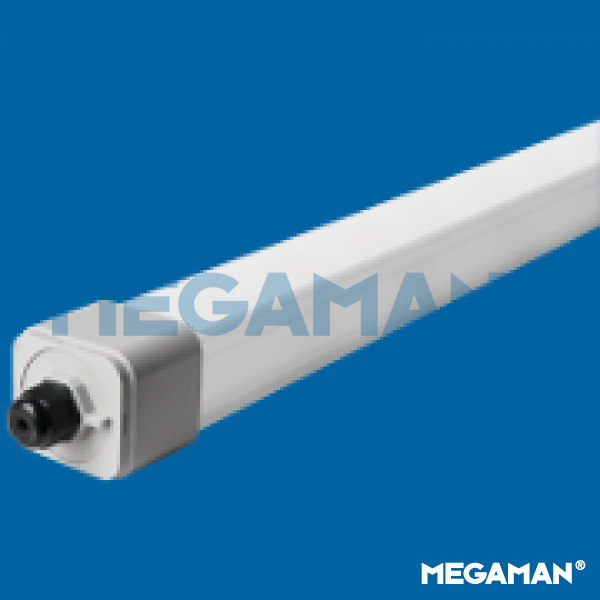

Model no.:

FOB70800v1-pl

Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60
Input Current (mA) 174
Power Factor (λ) >0.9
Product Data
Product Wattage (W) 36
Light Source Integrated LED-6500
Beam Angle (°) 160
Colour Render Index (Ra) Ra80
Protection Class CL II
Colour Consistency (SDCM) 6
Dimmable no
Operating Temperature -30°C to +50°C
Ambient Temperature Range (Ta) 25
Switching Cycles (times) 100000
Application Livestock husbandry
Performance Data
Luminous Flux (lm) 4300
Rated Useful Luminous Flux (lm) 4930
Luminous Efficacy (lm/W) 119
Rated Life (hrs) 50,000hrs L80B10@Ta25°C
IP Rating IP66/IP66
Product Dimensions
Length (mm) 1323
Width (mm) 60
Height (mm) 54
Remarks
DC Input Voltage:200-250VDC Glass-Fiber-Reinforced Nylon Endcap/PMMA Diffuser 4 pole terminal block: L1/L2/E/N L1:permanent live
