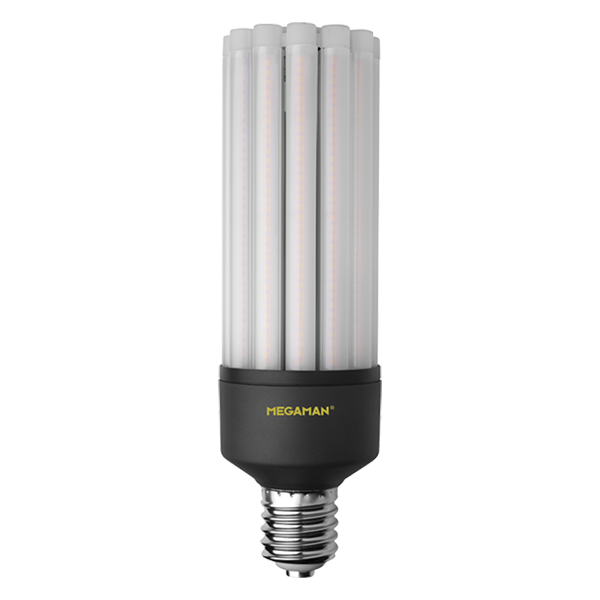

164W/80W E40 11500lm 4000K Ra80 Non-Dim
CLUSTERLITE®
Family Datasheet
Product Datasheet
LH201080-OPv00+E40+840+V0240
Electrical Data | |
Voltage (V) | 220-240V |
Frequency (Hz) | 50/60 Hz |
Current (mA) | 360 |
Power Factor (λ) | ≥ 0.90 |
Starting Time (sec) | < 0.5 s |
Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
Total Harmonic Distortion | 6.8% |
Product Data | |
Lamp Base | E40 |
Product Wattage (W) | 80 |
Equivalent Wattage (W) | 164 |
Colour Temperature (K) | 4000 |
Colour Render Index (Ra) | Ra80 |
Colour Consistency (SDCM) | 6 |
Dimmable | No |
Operating Temperature | -30°C to +40°C |
Maximum Casing Temperature (Tc) | 75°C |
Switching Cycles (times) | > 100000 |
Weight (g) | 689 |
Application | Car parks, Commercial Areas, High-ceilings, Industrial Areas, Streets Areas |
Performance Data | |
Total Luminous Flux (lm) | 11500 |
Luminous Efficacy (lm/W) | 144 |
Rated Life (hrs) | 50000 |
Product Dimensions | |
Diameter (mm) | 80 |
Width (mm) | 80 |
Height (mm) | 265 |
