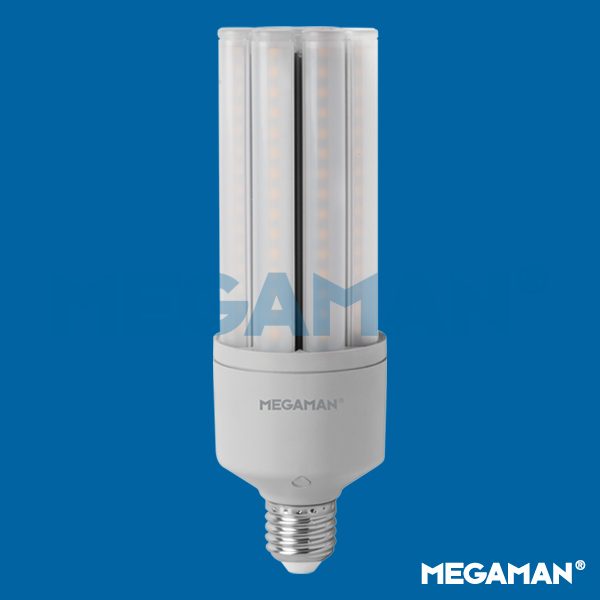

Please open the web page in browser.60W/29W E27 4000lm 2700K Ra80 Non-Dim
CLUSTERLITE®
IES File
Technical Document (PDF)
Family Datasheet
Product Datasheet
LH200029-OPv00+E27+827+V0240
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 Hz |
| Current (mA) | 135 |
| Power Factor (λ) | ≥ 0.90 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 60% of the Full Light Output (sec) | Instant |
| Total Harmonic Distortion | 31% |
| Product Data | |
| Lamp Base | E27 |
| Product Wattage (W) | 29 |
| Equivalent Wattage (W) | 60 |
| Colour Temperature (K) | 2700 |
| Colour Render Index (Ra) | Ra80 |
| Colour Consistency (SDCM) | 6 |
| Dimmable | No |
| Operating Temperature | -30°C to +60°C |
| Maximum Casing Temperature (Tc) | 90°C |
| Switching Cycles (times) | > 100000 |
| Weight (g) | 283 |
| Application | Car parks, Commercial Areas, High-ceilings, Industrial Areas, Streets Areas |
| Performance Data | |
| Total Luminous Flux (lm) | 4000 |
| Luminous Efficacy (lm/W) | 138 |
| Rated Life (hrs) | 30000 |
| Product Dimensions | |
| Diameter (mm) | 63 |
| Width (mm) | 63 |
| Height (mm) | 195 |
Technologies
-
4kV surge protection.
