Please open the web page in browser.R80 7W E27 SWFL 2800K
R50, R63, R80
Product Catalogue
IES File
Family Datasheet
Product Datasheet

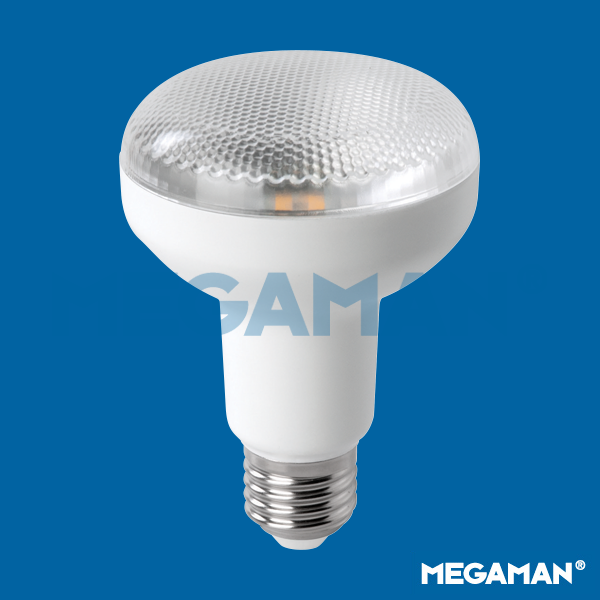

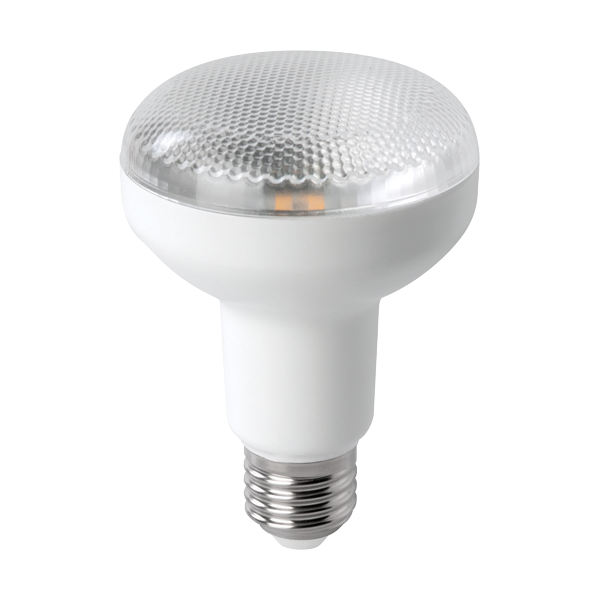

LR4307-SWFL-E27-2800K-230V
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 |
| Power Factor (λ) | > 0.5 |
| Starting Time (sec) | < 0.5 s |
| Warm-up Time Up to 100% of the Full Light Output (sec) | Instant full light |
| Product Data | |
| Lamp Base | E27 |
| Product Wattage (W) | 7 |
| Equivalent Wattage (W) | 74 |
| Reflector | R80 |
| Beam Angle (°) | SWFL (90) |
| Colour Temperature (K) | Warmwhite (2800K) |
| Colour Render Index (Ra) | Ra80 |
| Colour Consistency (SDCM) | SDCM <6 |
| Dimmable | No |
| Energy Label | A+ |
| Operating Temperature | -30°C to +40°C |
| Switching Cycles (times) | >1000000 |
| Mercury Content (mg) | N/A |
| Weight (g) | 90 |
| Application | Hospitality |
| Performance Data | |
| Max. Luminous Intensity (cd) | 230 |
| Total Luminous Flux (lm) | 520 |
| Luminous Flux in 90° cone (lm) | 300 |
| Luminous Flux in 120° cone (lm) | 420 |
| Rated Life (hrs) | 15000 |
| Lumen Maintenance at the End of Lamp Life (%) | ≥70 |
| Product Dimensions | |
| Diameter (mm) | 78 |
| Length (mm) | 112 |
|
Remarks The rated lamp life, rated luminous flux in 120° cone, total luminous flux, rated beam angle and rated wattage are equivalent to their nominal values shown on product packaging. There is no measurable output from 180nm to 380nm, so the chart shows only 380nm to 800nm. |
|
