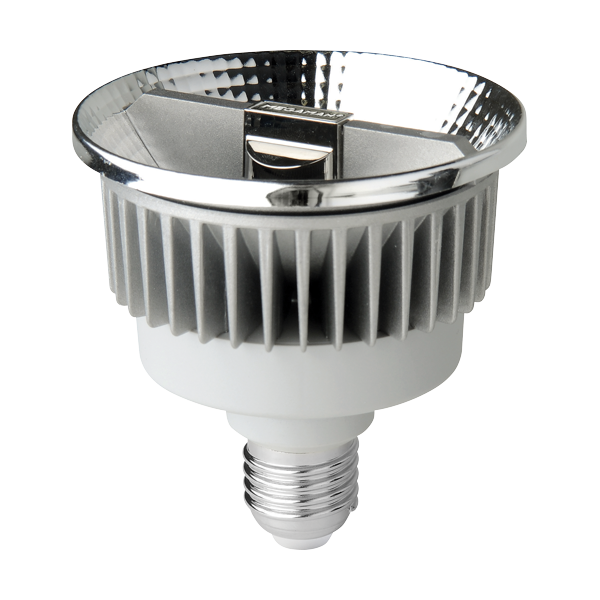

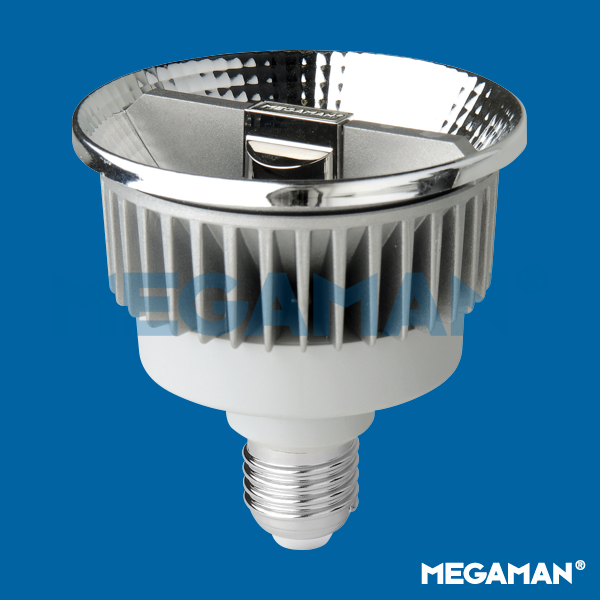

PAR30 15W E27 24D 2800K

Professional Series

TCH Technology

Photometric Diagram
Lux-cone Diagram
Spectral Power Distribution
Spectral Power Distribution
     Specification Sheet
Product Code:


Electrical Data
Voltage (V) 220-240V
Frequency (Hz) 50/60
Constant Current (mA) 93
Power Factor (λ) >0.5
Starting Time (sec) <0.5
Warm-up Time Up to 100% of the Full Light Output (sec) Instant full light
Product Data
Lamp Base E27
Product Wattage (W) 15
Reflector PAR30
Beam Angle (°) 24
Colour Temperature (K) Warmwhite (2800K)
Colour Render Index (Ra) Ra85
Colour Consistency (SDCM) <6
Dimmable No
Energy Label A
Operating Temperature -30°C to +40°C
Switching Cycles (times) >1000000
Mercury Content (mg) N/A
Weight (g) 239
Application Retail, Residential
Performance Data
Max. Luminous Intensity (cd) 3200
Total Luminous Flux (lm) 530
Luminous Flux in 90° cone (lm) 500
Rated Life (hrs) 30000
Lumen Maintenance at the End of Lamp Life (%) ≥90
Product Dimensions
Diameter (mm) 96
Length (mm) 102


  • TCH Technology
    Using patented Thermal Conductive Highway™ technology and a unique design of ‘heat drain’ across the reflector to dissipate heat efficiently from the dual axial LED to prevent deterioration of the chips and other components.
